AMPS Grids (from 12 UTC 08 Apr 2013 through 00 UTC 30 May 2013)

Map Projection

• Polar Stereographic projection; projection centered at S. Pole
• Orientation Longitude: 180.0° E
• True Latitude: 71.0° S

Grid 1 (30-km Outer grid)

WRF staggered grid:
dimensions: 330 x 436
lower left lat/lon (i.e., lower left corner of lower left mass point): -24.58405 N, 38.32245 E
upper right lat/lon (i.e., upper right corner of upper right mass point): -21.69593 N, -144.05524 E
WRF mass grid:
dimensions: 329 x 435
lower left lat/lon (center of lower left mass point): -24.72209 N, 38.30463 E
upper right lat/lon (center of upper right mass point): -21.82868 N, -144.07805 E

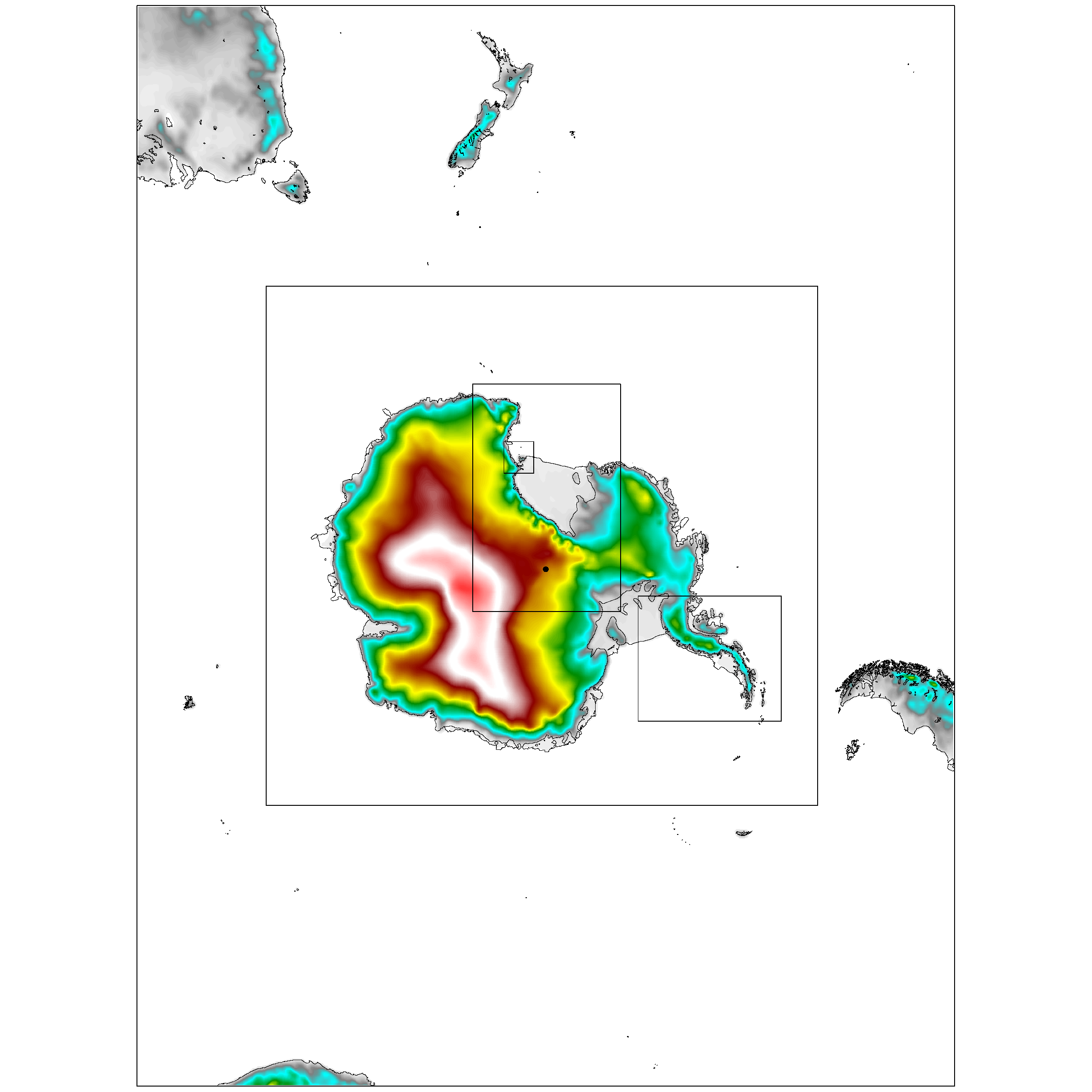

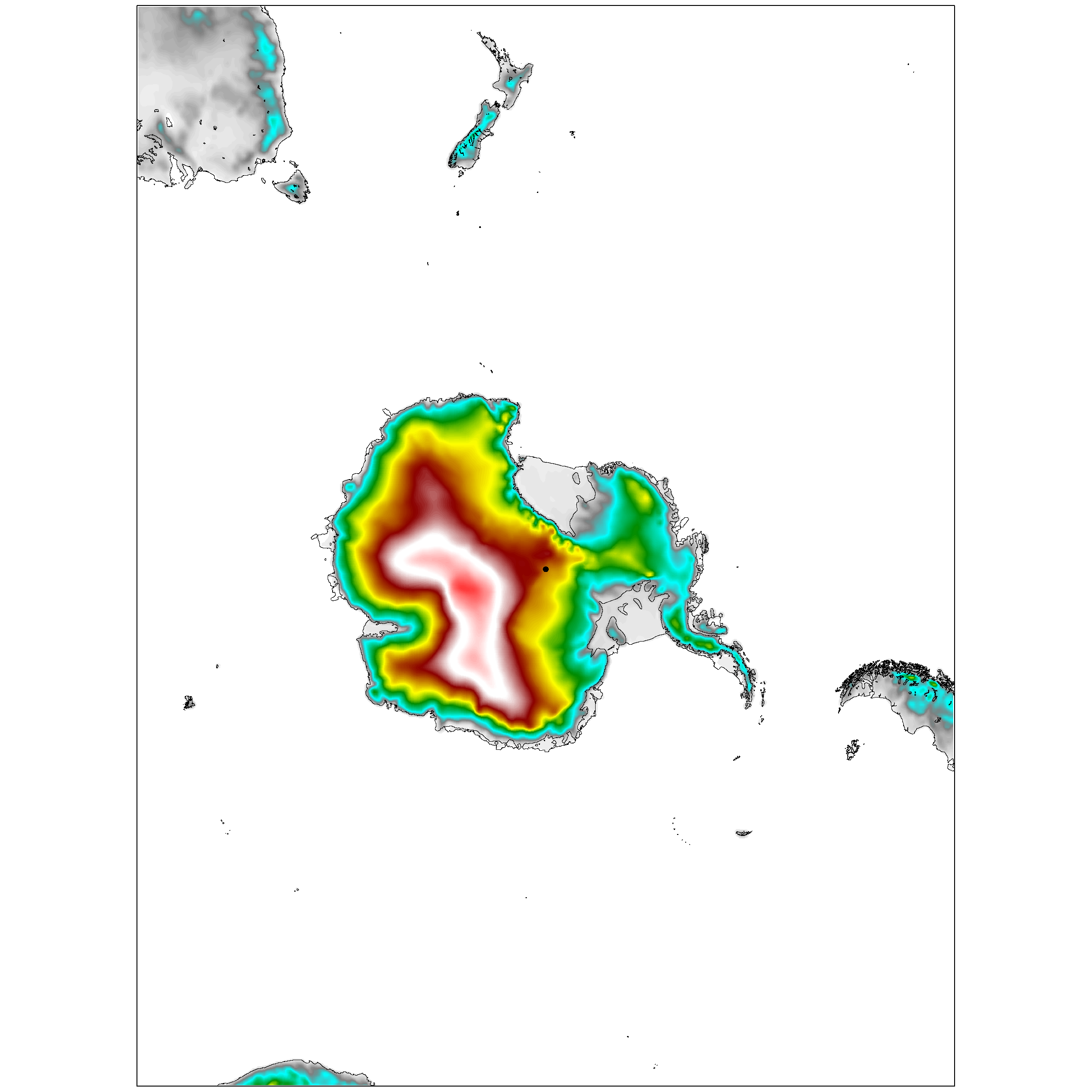

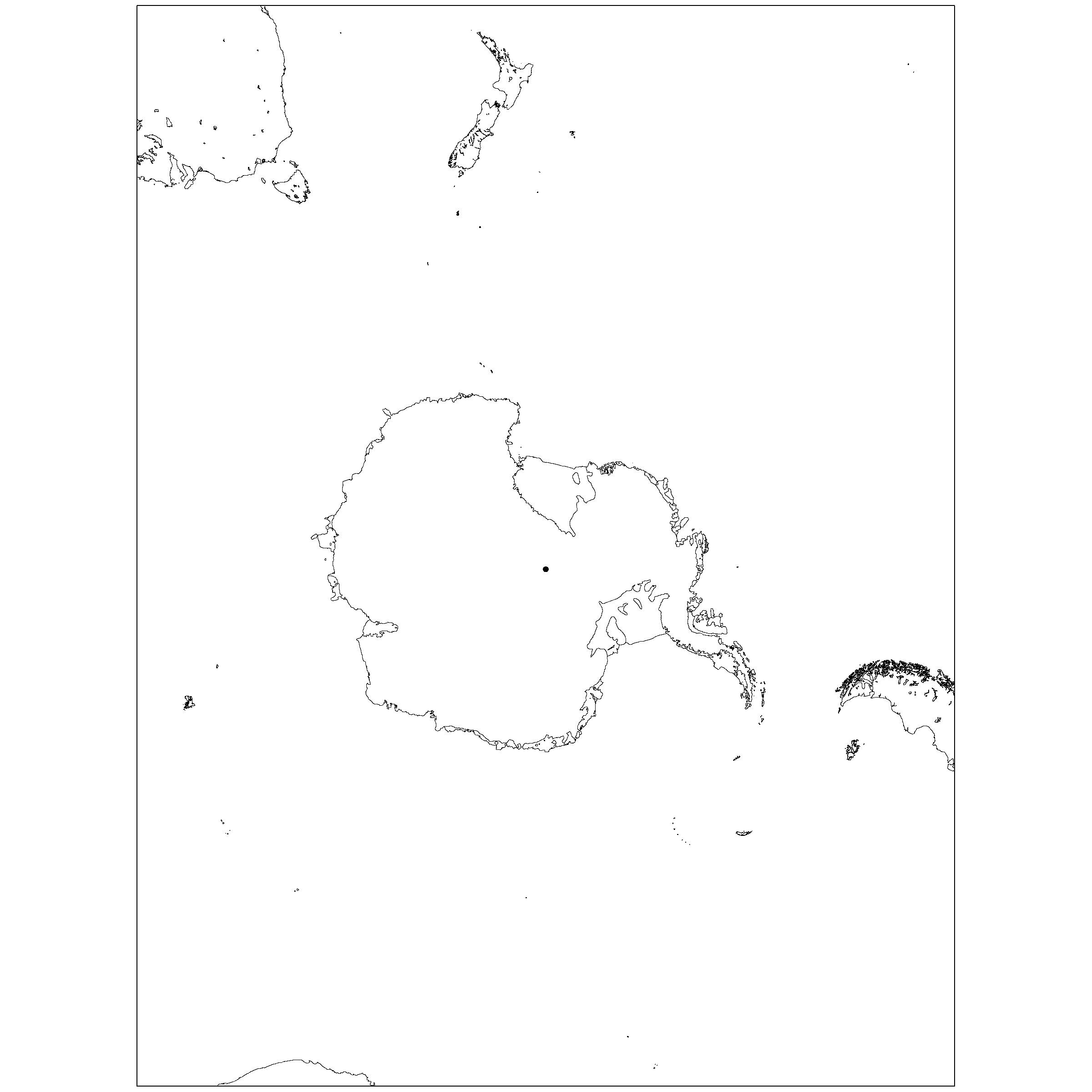

Color-fill terrain, showing subgrids	Color-fill terrain, no subgrids	Blank map, showing subgrids	Blank map, no subgrids
PDF version	PDF version	PDF version	PDF version
PostScript version	PostScript version	PostScript version	PostScript version
NCAR-Graphics gmeta file	NCAR-Graphics gmeta file	NCAR-Graphics gmeta file	NCAR-Graphics gmeta file

Grid 2 (10-km Continental grid)

WRF staggered grid:
dimensions: 667 x 628
lower left lat/lon (i.e., lower left corner of lower left mass point): -50.74364 N, 49.78339 E
upper right lat/lon (i.e., upper right corner of upper right mass point): -48.14365 N, -136.12187 E
WRF mass grid:
dimensions: 666 x 627
lower left lat/lon (i.e., center of lower left mass point): -50.80146 N, 49.79108 E
upper right lat/lon (i.e., center of upper right mass point): -48.20068 N, -136.12355 E

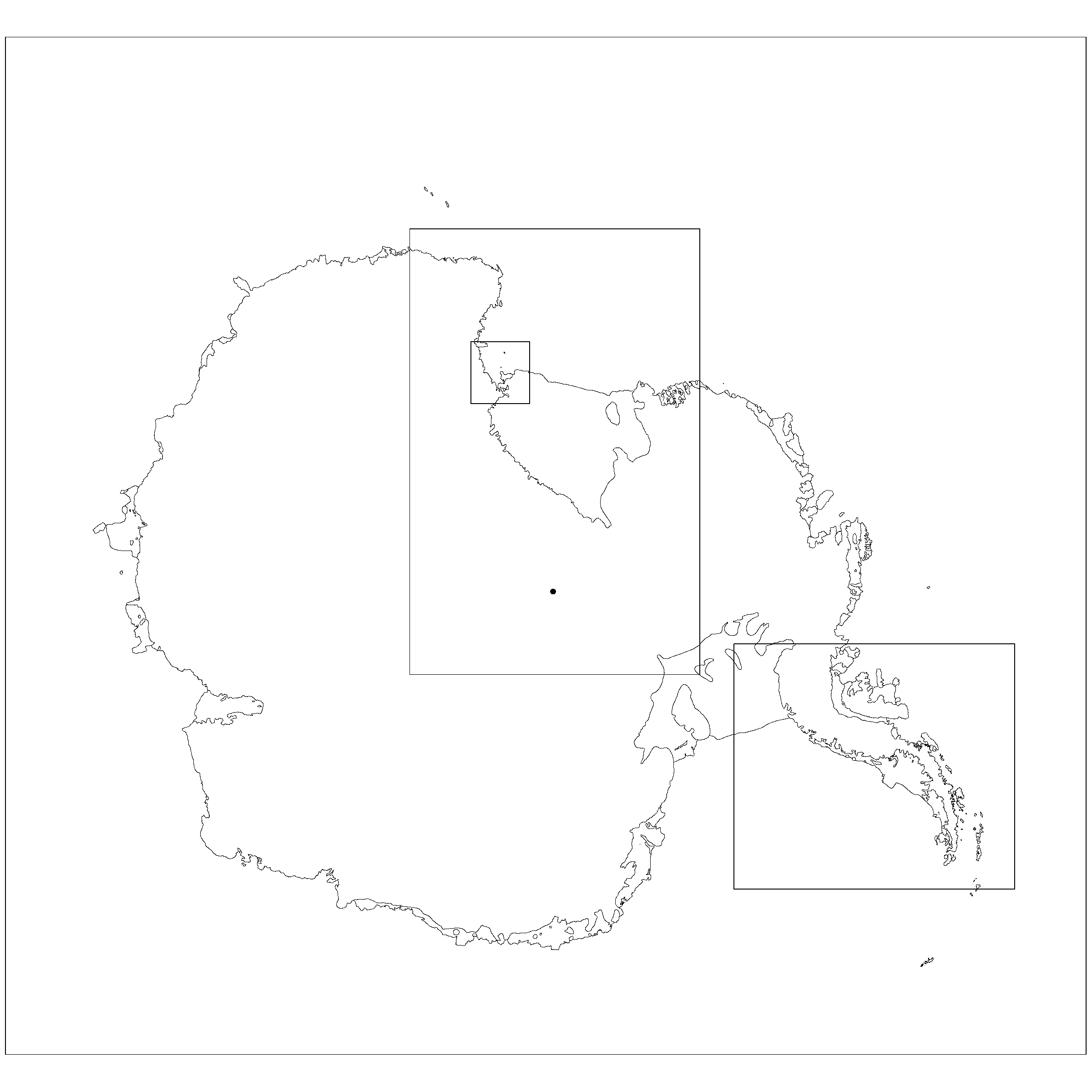

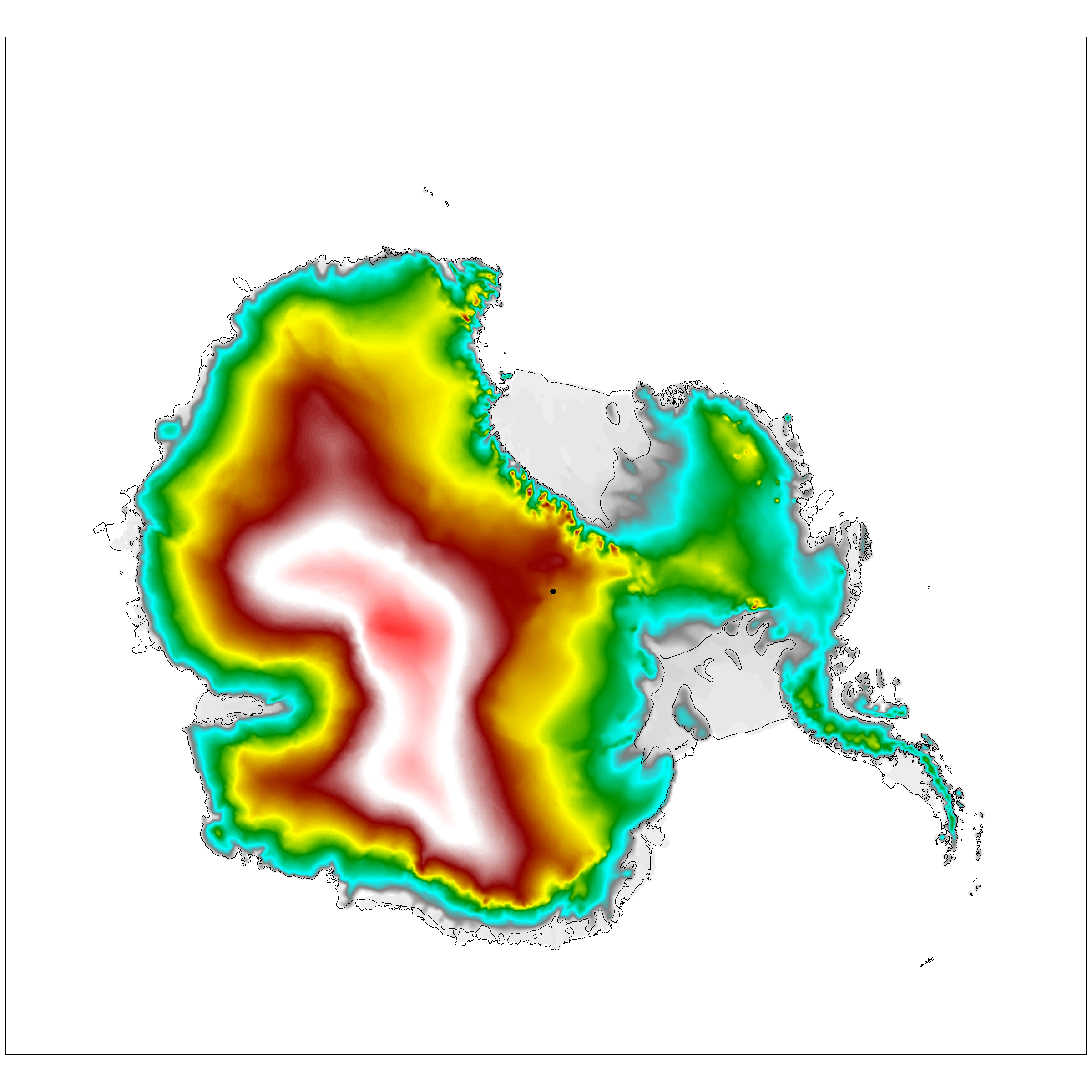

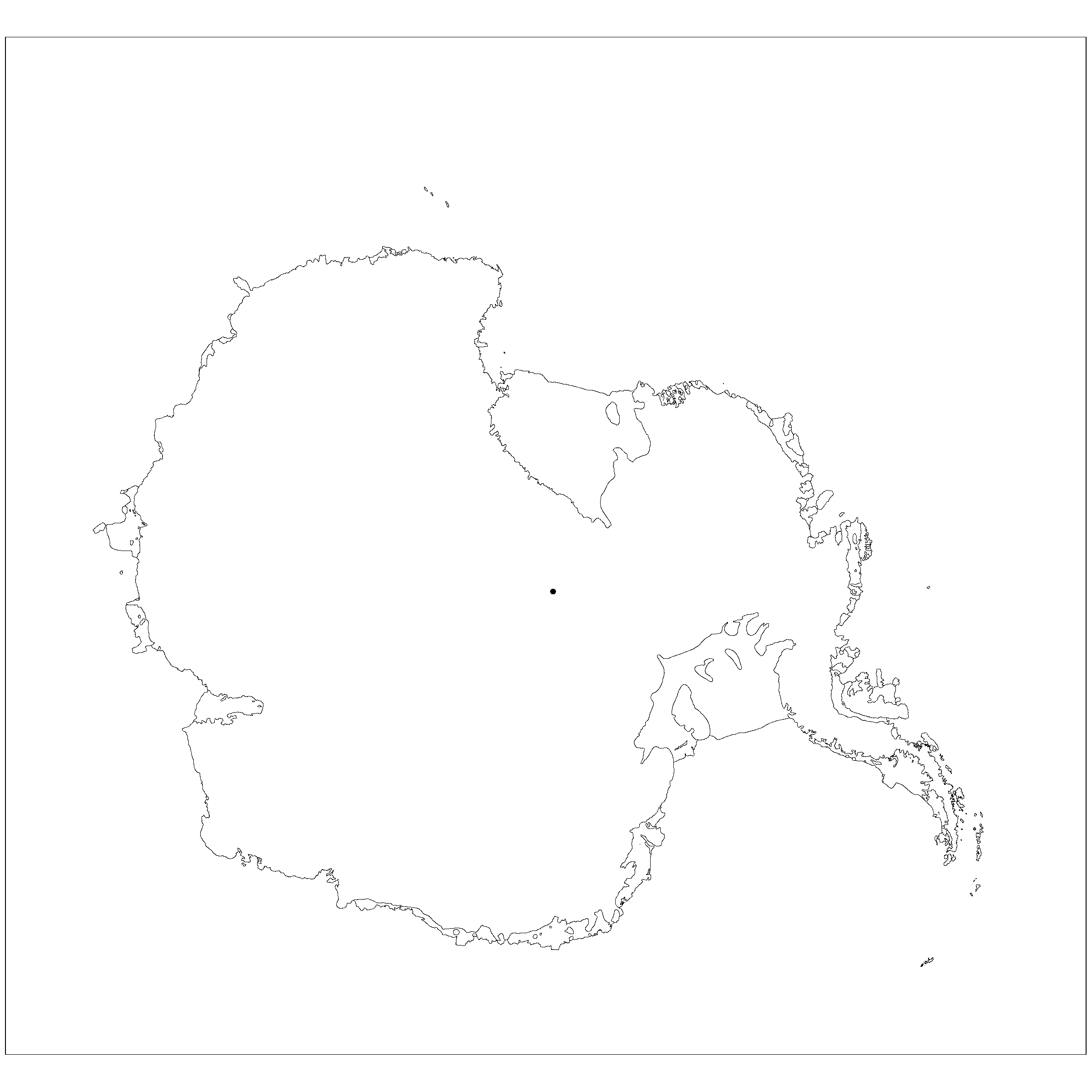

Color-fill terrain, showing subgrids	Color-fill terrain, no subgrids	Blank map, showing subgrids	Blank map, no subgrids
PDF version	PDF version	PDF version	PDF version
PostScript version	PostScript version	PostScript version	PostScript version
NCAR Graphics gmeta file	NCAR Graphics gmeta file	NCAR Graphics gmeta file	NCAR Graphics gmeta file

Grid 3 (3.3-km Ross Sea grid)

WRF staggered grid:
dimensions: 538 x 826
lower left lat/lon (i.e., lower left corner of lower left mass point): -80.55930 N, 59.86377 E
upper right lat/lon (i.e., upper right corner of upper right mass point): -67.96906 N,-157.96695 E
WRF mass grid:
dimensions: 537 x 825
lower left lat/lon (i.e., center of lower left mass point): -80.58021 N, 59.89771 E
upper right lat/lon (i.e., center of upper right mass point): -67.98839 N, -157.98880 E

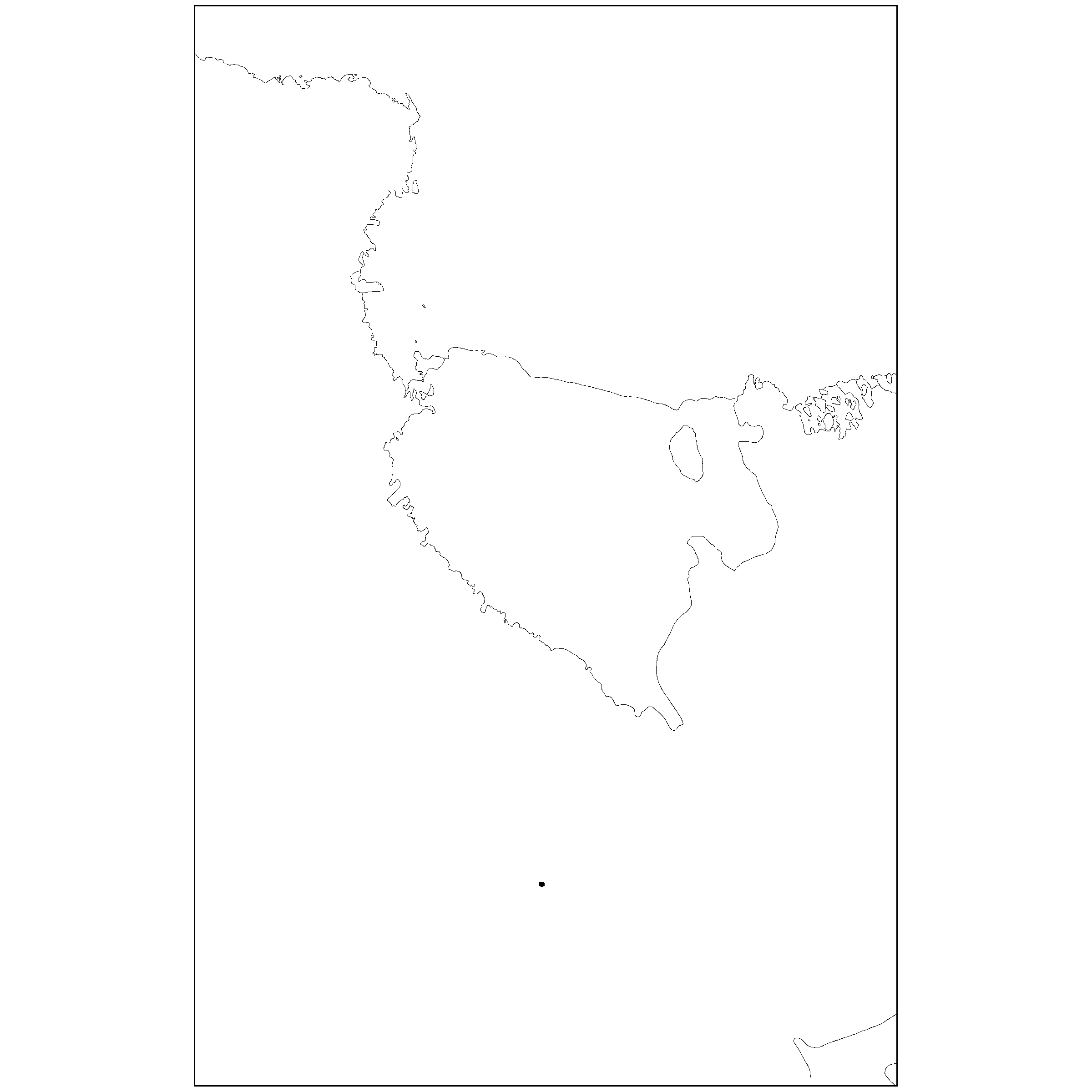

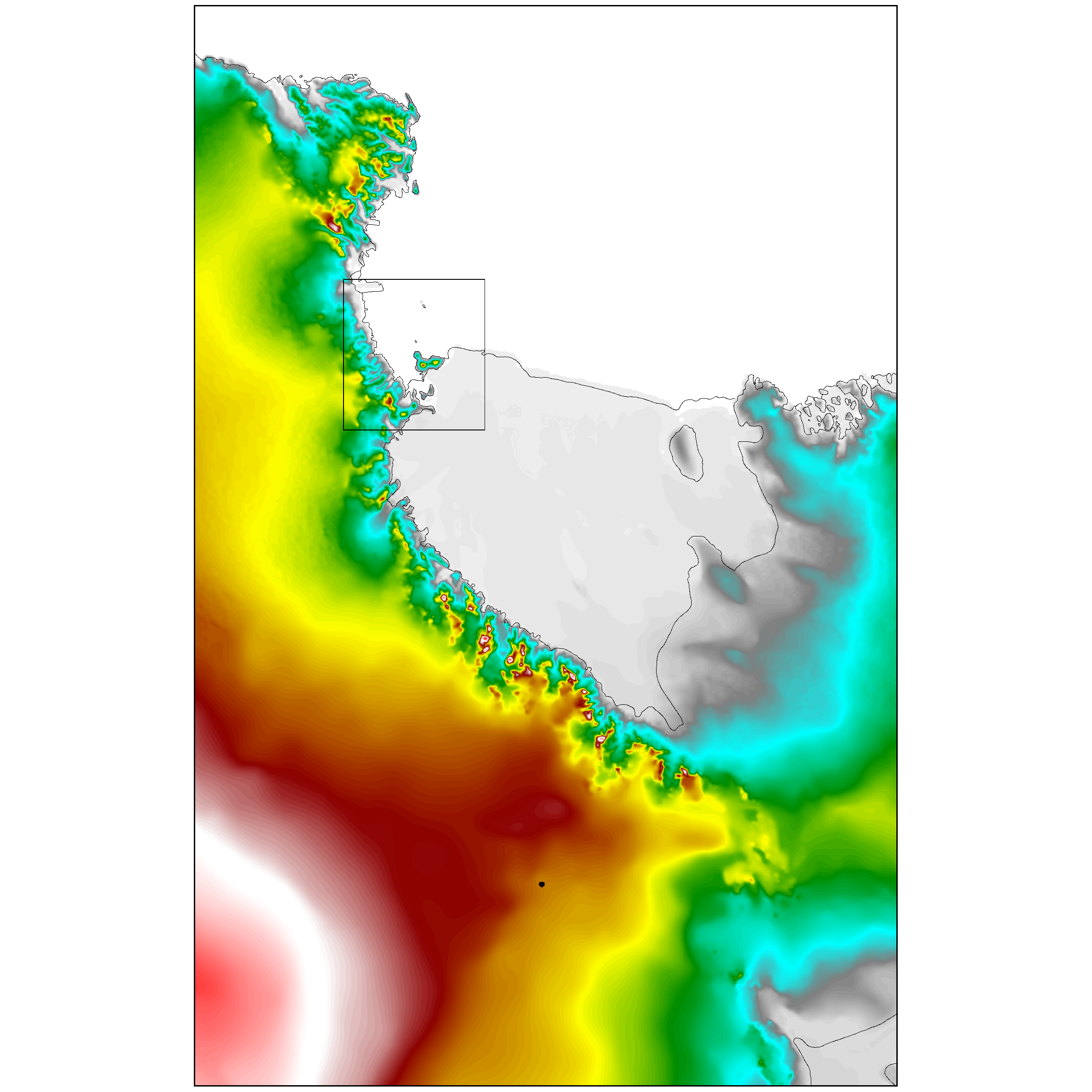

Color-fill terrain, showing subgrids	Color-fill terrain, no subgrids	Blank map, showing subgrids	Blank map, no subgrids
PDF version	PDF version	PDF version	PDF version
PostScript version	PostScript version	PostScript version	PostScript version
NCAR-Graphics gmeta file	NCAR-Graphics gmeta file	NCAR-Graphics gmeta file	NCAR-Graphics gmeta file

Grid 5 (1.1-km Ross Island grid):

WRF staggered grid:
dimensions: 325 x 346
lower left lat/lon (i.e., lower left corner of lower left mass point): -78.37363 N, 156.40613 E
upper right lat/lon (i.e., upper right corner of upper right mass point): -75.77485 N, 174.61961 E
WRF mass grid:
dimensions: 324 x 345
lower-left lat/lon (i.e., center of lower left mass point): -78.37103 N, 156.43933 E
upper-right lat/lon (i.e., center of upper right mass point): -75.77942 N, 174.59718 E

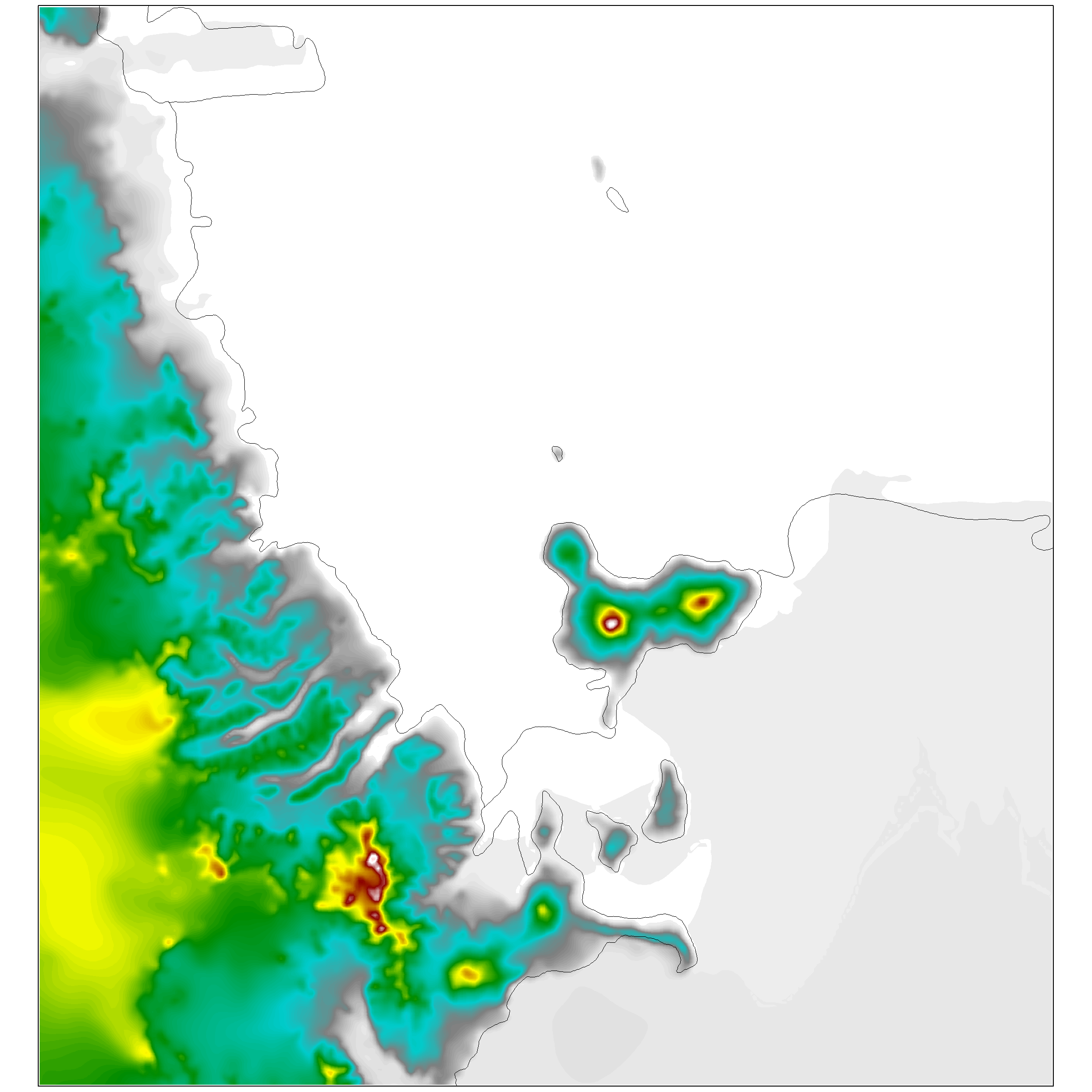

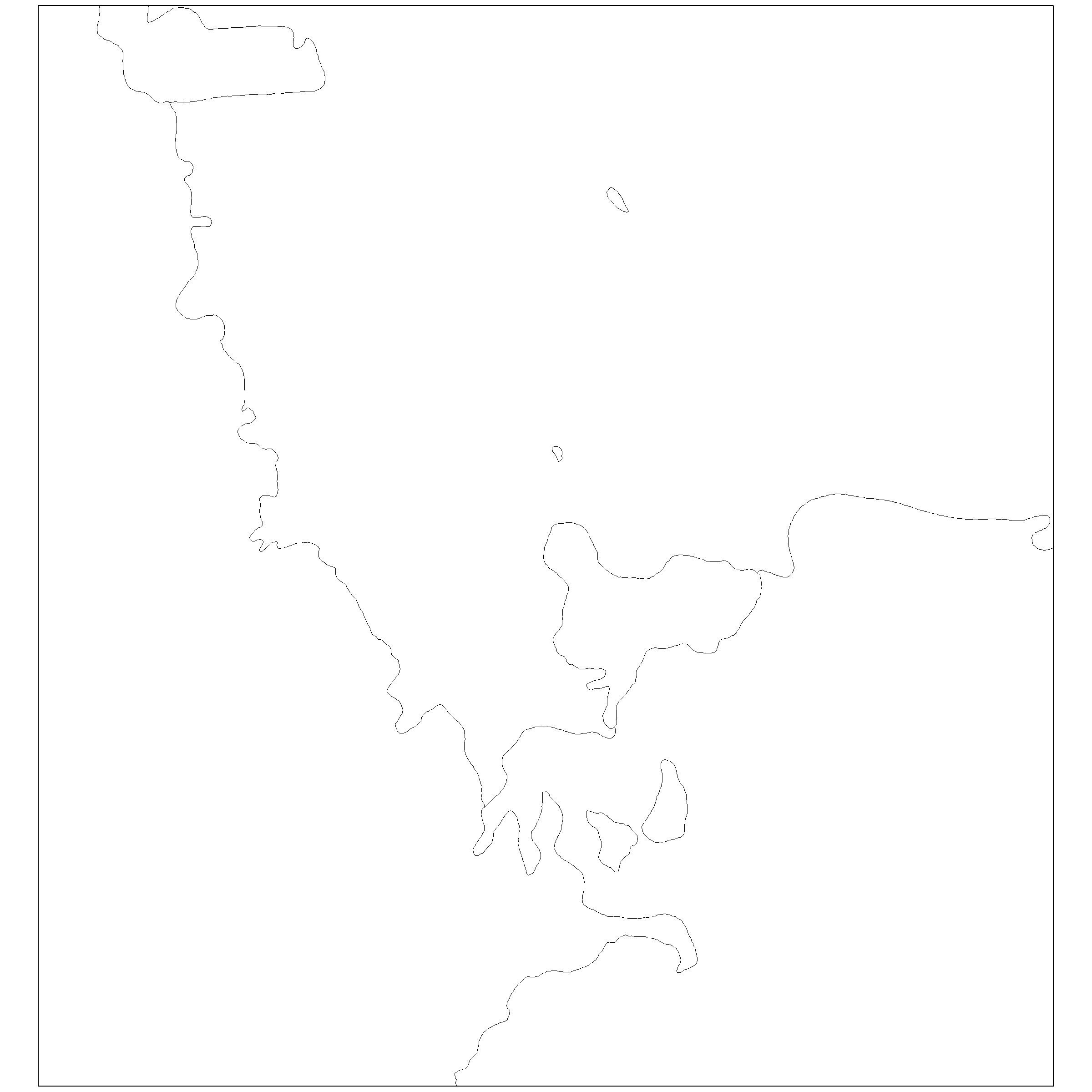

Color-fill terrain	Blank map
PDF version	PDF version
PostScript version	PostScript version
NCAR-Graphics gmeta file	NCAR-Graphics gmeta file

Grid 6 (3.3-km Antarctic Peninsula grid):

WRF staggered grid:
dimensions: 520 x 454
lower left lat/lon (i.e., lower left corner of lower left mass point): -70.35059 N, -31.30124 E
upper right lat/lon (i.e., upper right corner of upper right mass point): -63.98048 N, -83.50766 E
WRF mass grid:
dimensions: 519 x 453
lower-left lat/lon (i.e., center of lower left mass point): -70.34448 N, -31.36240 E
upper-right lat/lon (i.e., center of upper right mass point): -63.99334 N, -83.47067 E

Color-fill terrain	Blank map
PDF version	PDF version
PostScript version	PostScript version
NCAR-Graphics gmeta file	NCAR-Graphics gmeta file
