WRF  12 Kilometer CONUS Benchmarks, SGI Detail Page

SGI Detail

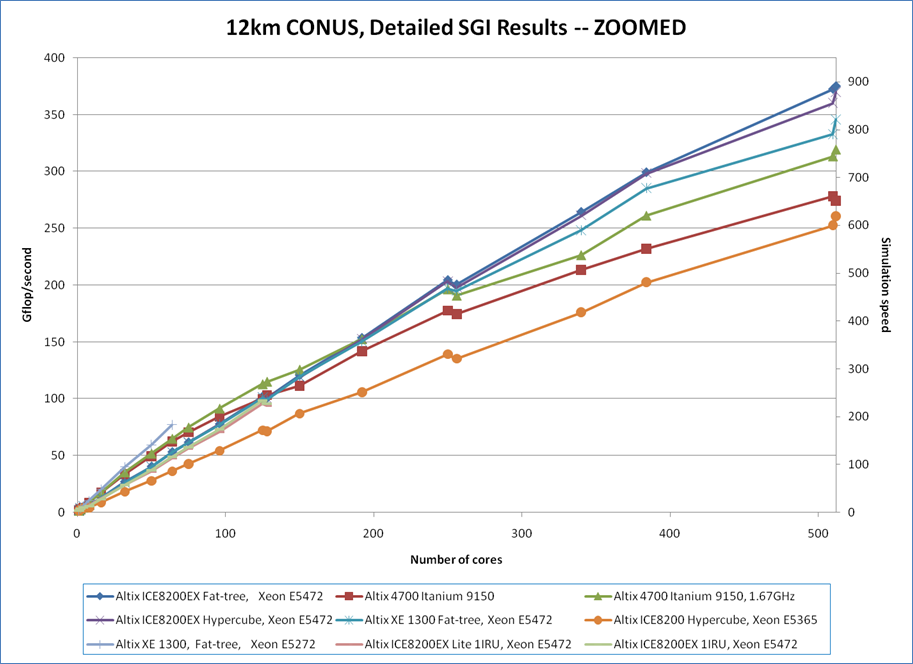

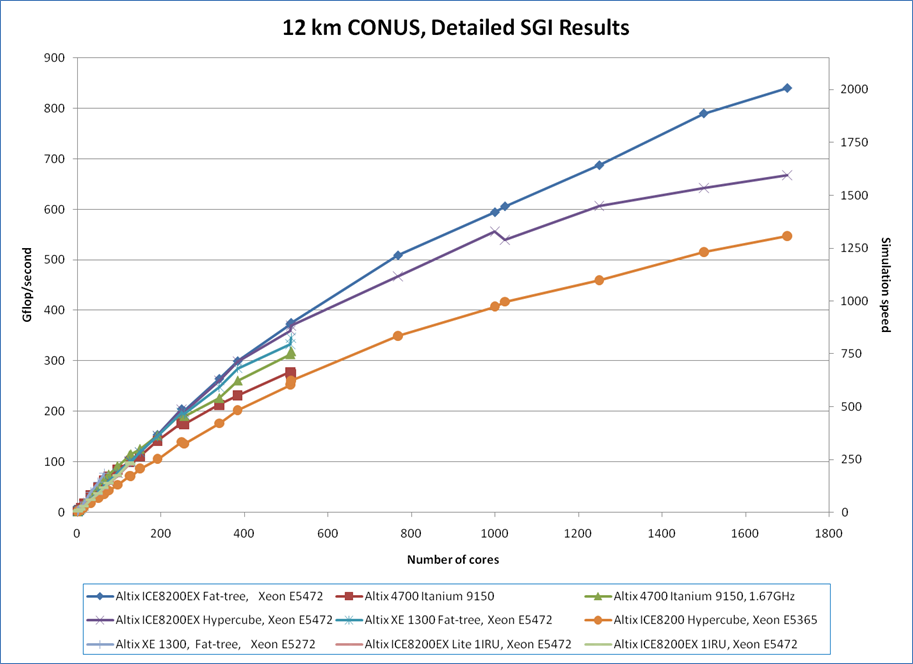

This page shows detailed results submitted across a number of systems and options (detailed below) submitted with the SGI benchmark results.  Scroll down past plots for additional information.



12 KM CONUS Benchmark

The domain is 12 KM horizontal resolution on a 425 by 300 grid with 35 vertical levels, with a time step of 72 seconds.  The benchmark is restarted on October 25, 2001 00Z and run for 3 hours and then the time per timestep is averaged over all but the first time step, which is discarded.  The average time per time step is divided by the operation count for an average time step, 30.1 billion floating point operations[1], to determine floating point rate.  Return to the WRF V3 Benchmarks Page for additional information.

System Descriptions

·  Altix ICE 8200EX Fat-Tree- submitted by SGI

  1. Model Version: WRFV3.0, April 4th 2008
  2. OS: SUSE Enterprise Linux
  3. Compiler: ifort
  4. Processor: Xeon E5472 (Harpertown) 3GHz quad-cores with 6MB L2 per core pair, Intel 5400 series chipset (Seaburg)
  5. Memory: 2GB per core
  6. Interconnect: Infiniband
  7. Notes: Fat-tree topology

·  Altix 4700 RMT- submitted by SGI

  1. Model Version: WRFV3.0, April 4th 2008
  2. OS: SUSE Enterprise Linux
  3. Compiler: ifort
  4. Processor: Intel 9150 (Montvale) dual-cores 1.67Ghz with 12MB L3 per core, 667MHz FSB
  5. Memory: 2GB per core
  6. Interconnect: NUMAlink
  7. Notes: run with reorder_mesh=true

·  Altix 4700- submitted by SGI

  1. Model Version: WRFV3.0, April 4th 2008
  2. OS: SUSE Enterprise Linux
  3. Compiler: ifort
  4. Processor: Intel 9150 (Montvale) dual-cores 1.67Ghz with 12MB L3 per core, 667MHz FSB
  5. Memory: 2GB per core
  6. Interconnect: NUMAlink
  7. Notes:

·  Altix ICE 8200EX Hypercube- submitted by SGI

  1. Model Version: WRFV3.0, April 4th 2008
  2. OS: SUSE Enterprise Linux
  3. Compiler: ifort
  4. Processor: Xeon E5472 (Harpertown) 3GHz quad-cores with 6MB L2 per core pair, Intel 5400 series chipset (Seaburg)
  5. Memory: 2GB per core
  6. Interconnect: Infiniband
  7. Notes: Hypercube topology

·  Altix XE 1300- submitted by SGI

  1. Model Version: WRFV3.0, April 4th 2008
  2. OS: SUSE Enterprise Linux
  3. Compiler: ifort
  4. Processor: Xeon E5472 (Harpertown) 3GHz quad-cores with 6MB L2 per core pair, Intel 5400 series chipset (Seaburg)
  5. Memory: 2GB per core
  6. Interconnect: Infiniband
  7. Notes: Fat-tree topology

·  Altix ICE 8200 Hypercube- submitted by SGI

  1. Model Version: WRFV3.0, April 4th 2008
  2. OS: SUSE Enterprise Linux
  3. Compiler: ifort
  4. Processor: Xeon E5365 (Clovertown) 3GHz quad-cores with 4MB L2 per core pair, Intel 5100 series chipset (Greencreek)
  5. Memory: 2GB per core
  6. Interconnect: Infiniband
  7. Notes: Hypercube topology





Updated Nov. 14, 2008. John Michalakes, NCAR.  michalak@ucar.edu








[1] Count determined on Cray X1E, Peter Johnsen, Cray Inc.  November, 2008.
