    feld=ter; ptyp=hc; cint=100; colr=red
    feld=map; ptyp=hb
    feld=tic; ptyp=hb
    time=0
   ===================================================================================

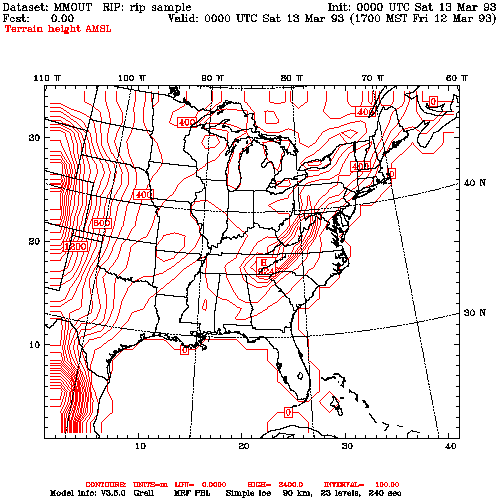

  • Field TERRAIN is plotted (feld=ter), as a horizontal contour plot (ptyp=hc), contour intervals are set to 100 (cint=100), and contours will be plotted in red (colr=red)

  • Overlaid is a map (feld=map), which is plotted as a horizontal background plot (ptyp=hb)

  • Overlaid is tic markings (feld=tic), which is also plotted as a horizontal background plot (ptyp=hb)

  • This frame will only be plotted for time=0

   ===================================================================================
    feld=ter; ptyp=hc; cint=50; cmth=fill; cosq=-1e-5,light.blue,1e-5,white,>
        3000,brown
    feld=map; ptyp=hb
    feld=tic; ptyp=hb
    time=0
   ===================================================================================

  • Field TERRAIN is plotted (feld=ter), as a horizontal contour plot (ptyp=hc), contour intervals are set to 50 (cint=50), the contouring method is filling (cmth=fill), and colors will be light blue for negative values and from white to brown for positive values (cosq)

  • Overlaid is a map (feld=map), which is plotted as a horizontal background plot (ptyp=hb)

  • Overlaid is tic markings (feld=tic), which is also plotted as a horizontal background plot (ptyp=hb)

  • This frame will only be plotted for time=0
