AMPS Grids (as of 12 UTC 10 Oct 2017)

older configurations:
2013-05-30
2013-04-08

Map Projection

• Polar Stereographic projection; projection centered at S. Pole
• Orientation Longitude: 180.0° E
• True Latitude: 71.0° S

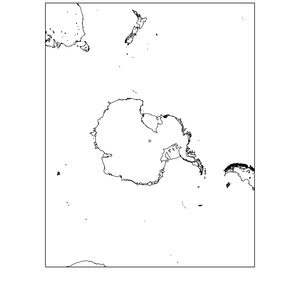

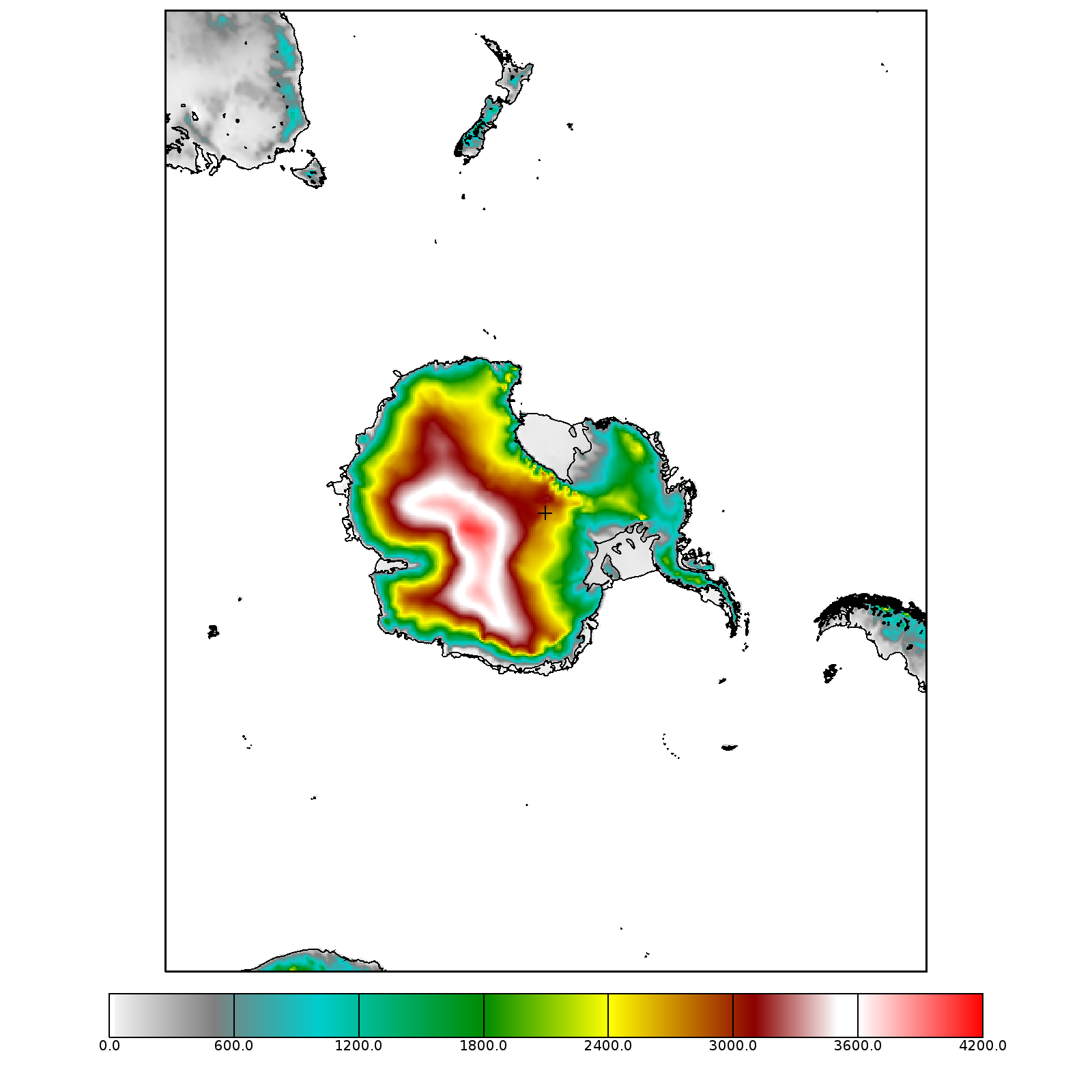

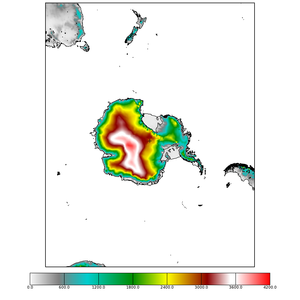

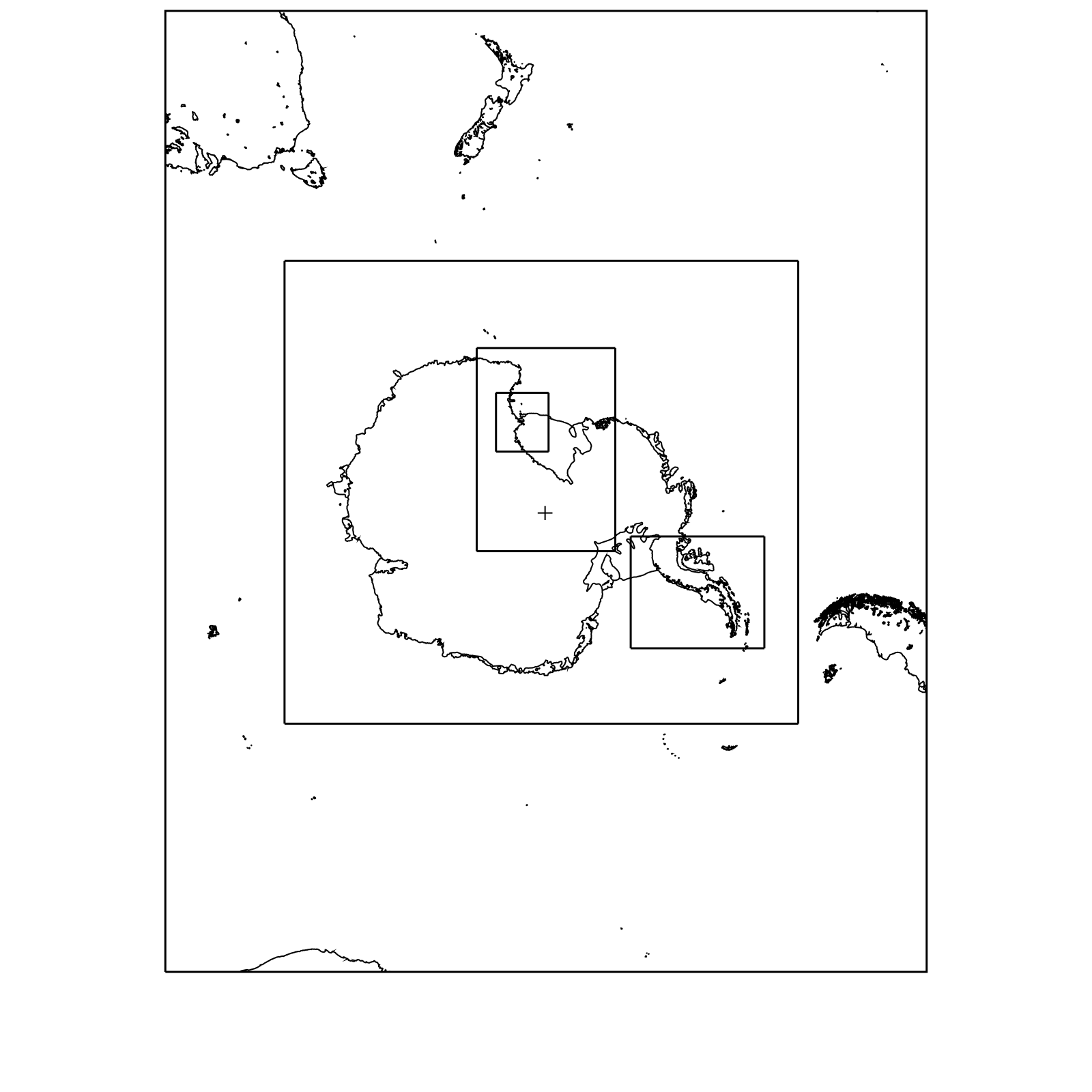

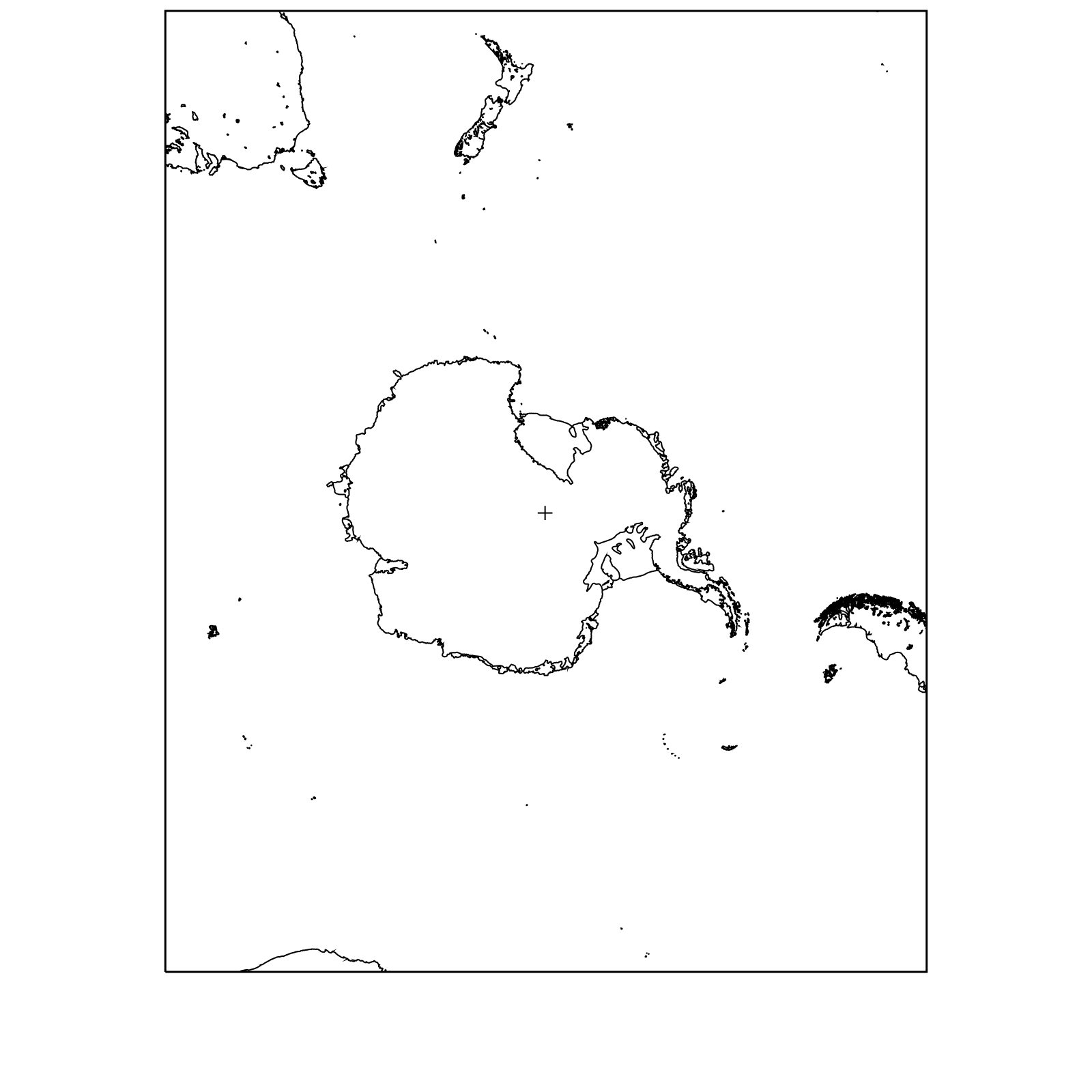

Grid 1 (24-km Outer grid)

WRF staggered grid:
dimensions: 413 x 545
lower left lat/lon (i.e., lower left corner of lower left mass grid cell): -24.5321121 N, 38.3598328 E
upper right lat/lon (i.e., upper right corner of upper right mass grid cell): -21.6470909 N, -144.017624 E
WRF mass grid:
dimensions: 412 x 544
lower left lat/lon (center of lower left mass grid cell): -24.6424694 N, 38.3457031 E
upper right lat/lon (center of upper right mass grid cell): -21.753233 N, -144.035767 E

Color-fill terrain, showing subgrids	Color-fill terrain, no subgrids	Blank map, showing subgrids	Blank map, no subgrids
PNG version	PNG version	PNG version	PNG version
PDF version	PDF version	PDF version	PDF version
PostScript version	PostScript version	PostScript version	PostScript version

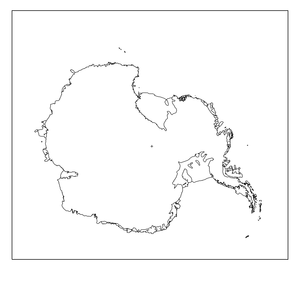

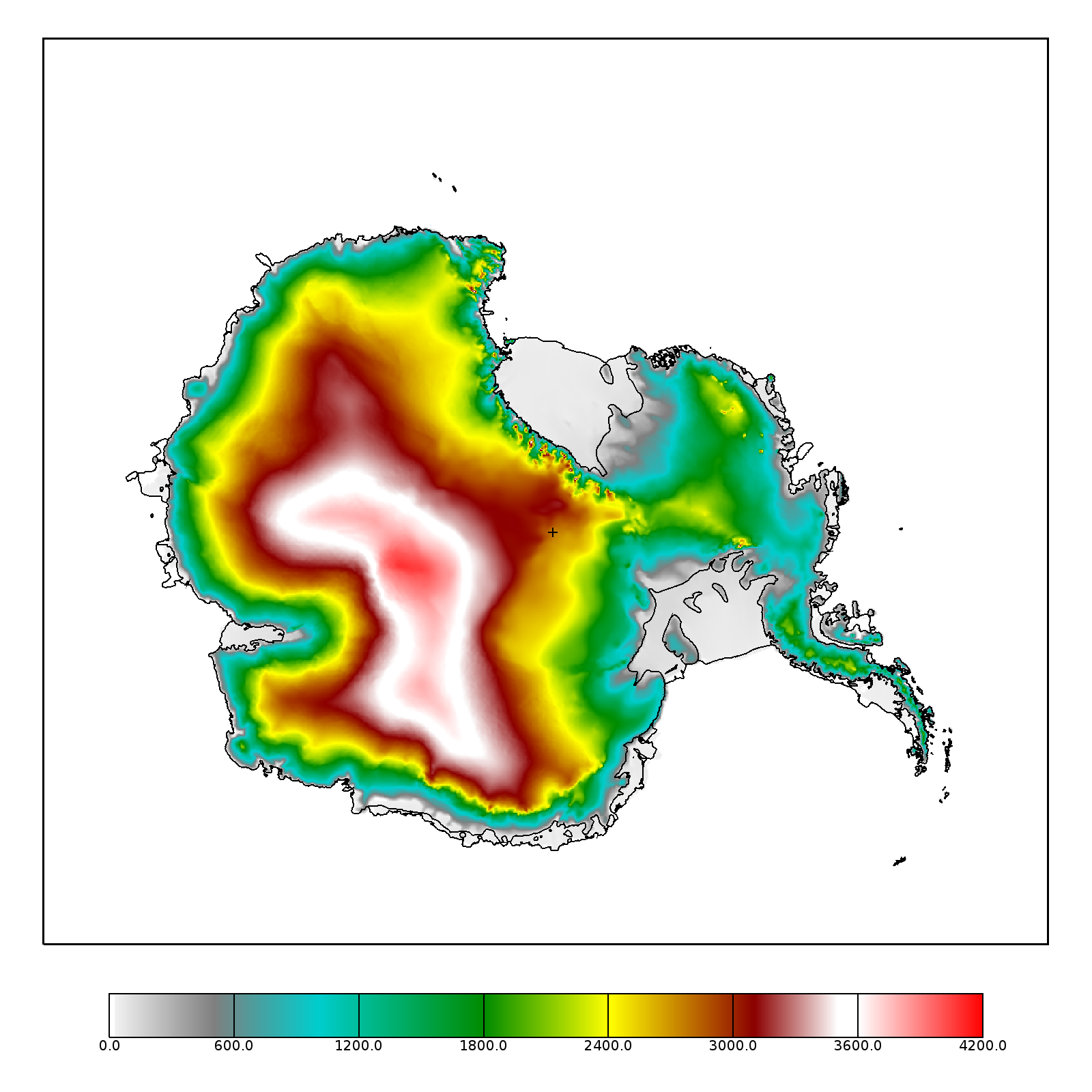

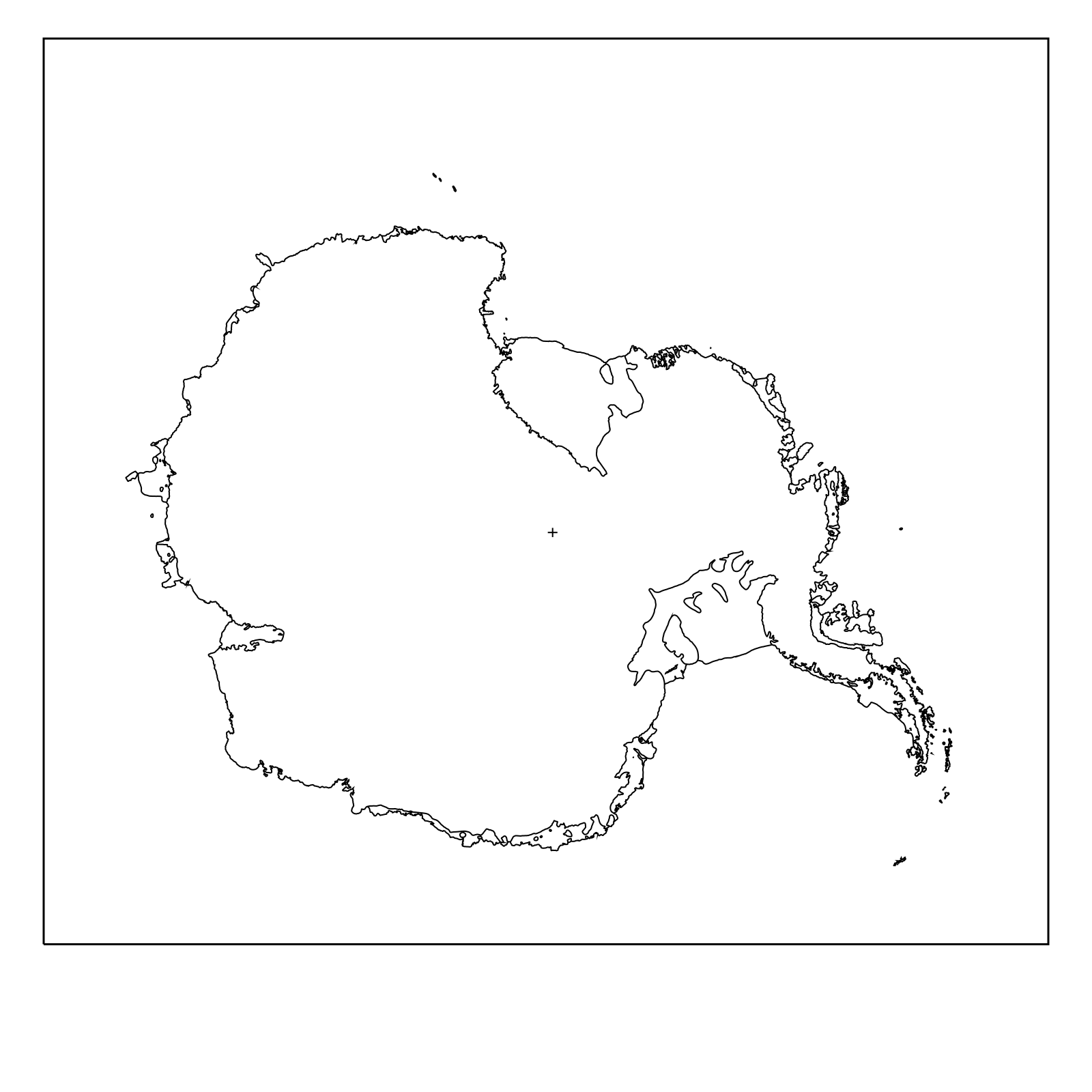

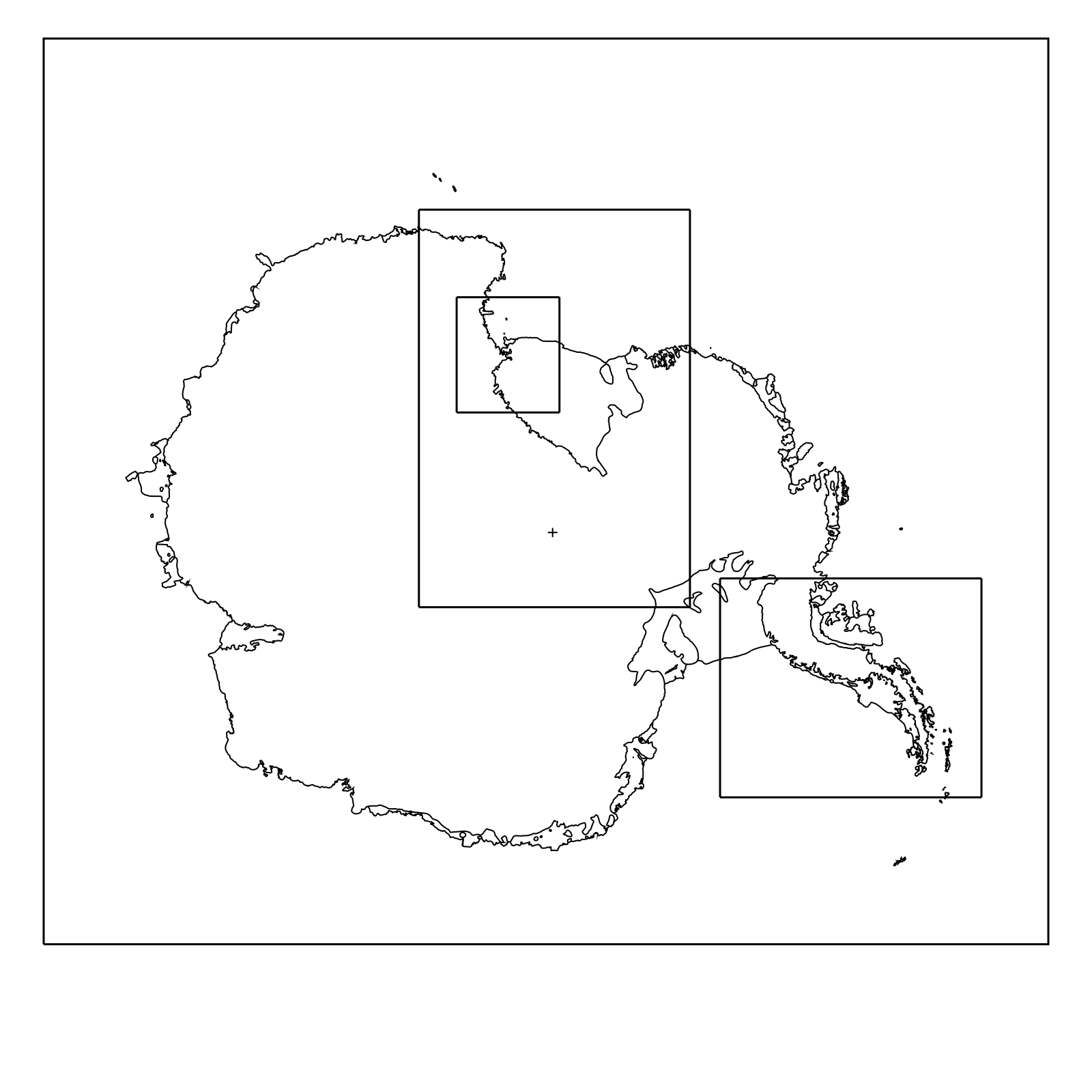

Grid 2 (8-km Continental grid)

WRF staggered grid:
dimensions: 835 x 787
lower left lat/lon (i.e., lower left corner of lower left mass grid cell): -50.639679 N, 49.7697754 E
upper right lat/lon (i.e., upper right corner of upper right mass grid cell): -48.0744934 N, -136.171112 E
WRF mass grid:
dimensions: 834 x 786
lower left lat/lon (i.e., center of lower left mass grid cell): -50.6858902 N, 49.7758789 E
upper right lat/lon (i.e., center of upper right mass grid cell): -48.1201019 N, -136.172516 E

Color-fill terrain, showing subgrids	Color-fill terrain, no subgrids	Blank map, showing subgrids	Blank map, no subgrids
PNG version	PNG version	PNG version	PNG version
PDF version	PDF version	PDF version	PDF version
PostScript version	PostScript version	PostScript version	PostScript version

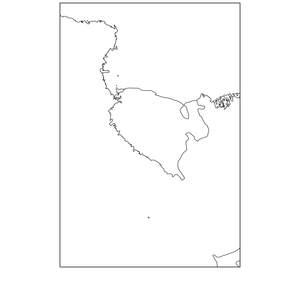

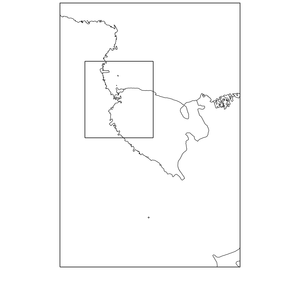

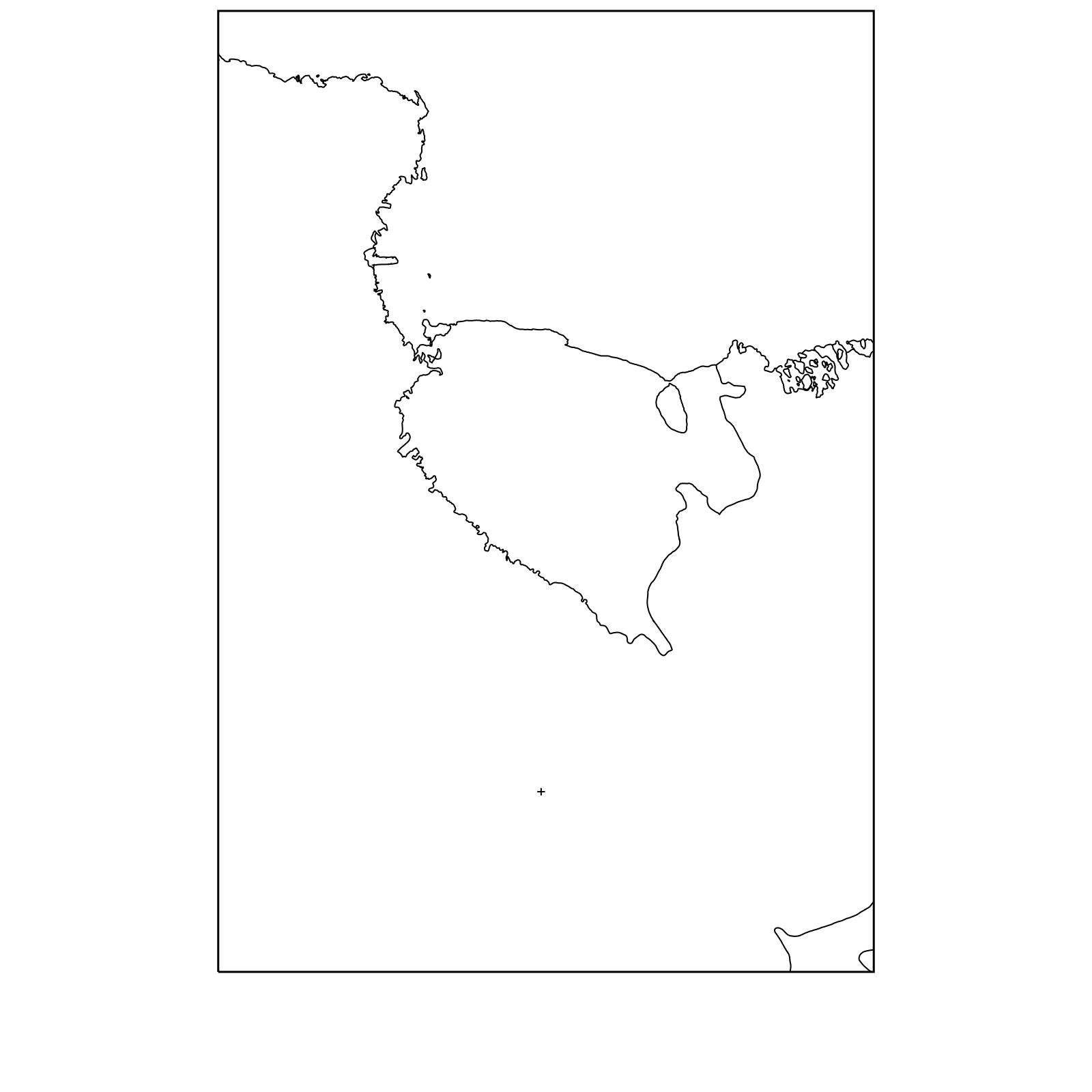

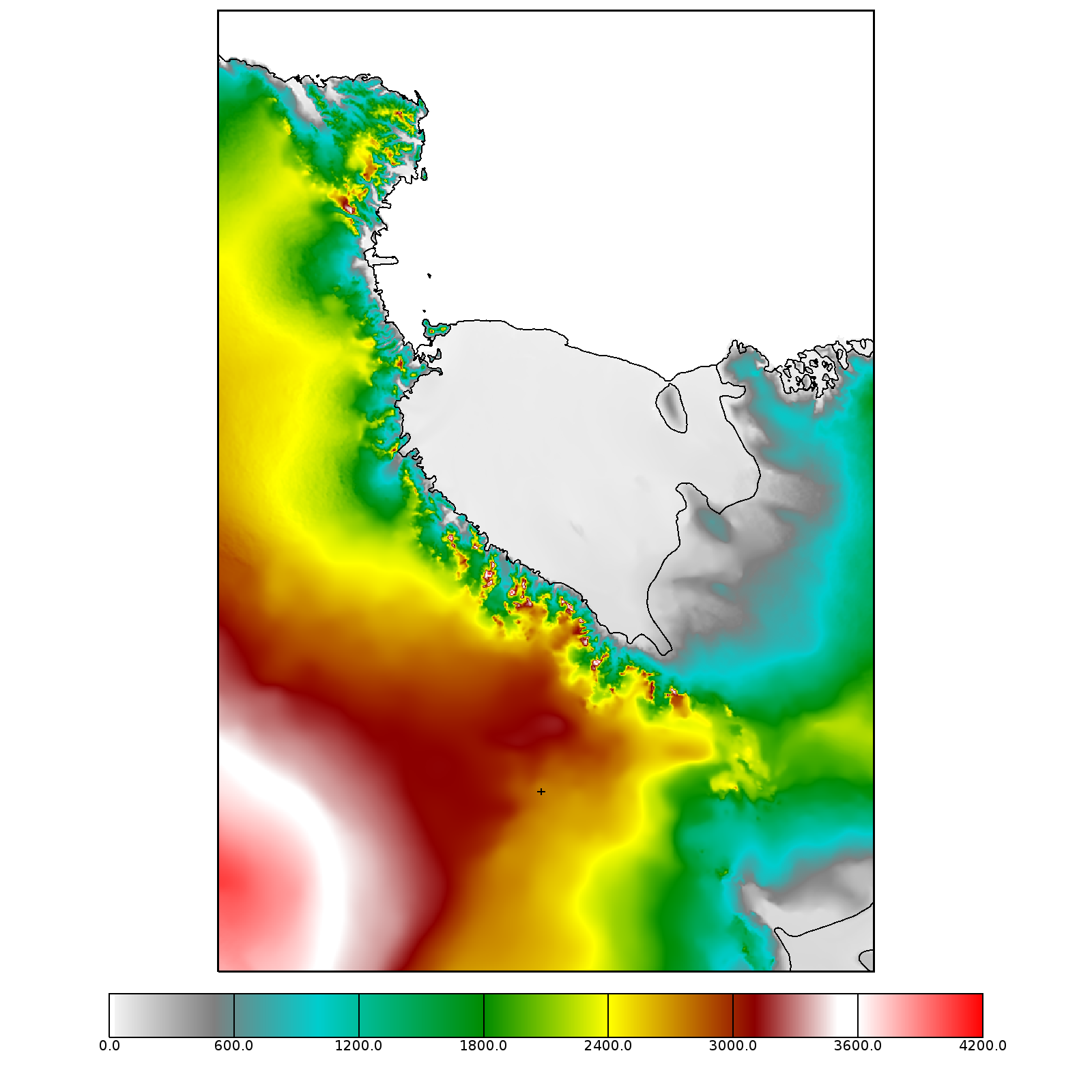

Grid 3 (2.67-km Ross Sea grid)

WRF staggered grid:
dimensions: 676 x 1036
lower left lat/lon (i.e., lower left corner of lower left mass grid cell): -80.5123672 N, 59.7067261 E
upper right lat/lon (i.e., upper right corner of upper right mass grid cell): -67.9043274 N,-157.857666 E
WRF mass grid:
dimensions: 675 x 1035
lower left lat/lon (i.e., center of lower left mass grid cell): -80.5291443 N, 59.7334595 E
upper right lat/lon (i.e., center of upper right mass grid cell): -67.9197998 N, -157.875031 E

Color-fill terrain, showing subgrids	Color-fill terrain, no subgrids	Blank map, showing subgrids	Blank map, no subgrids
PNG version	PNG version	PNG version	PNG version
PDF version	PDF version	PDF version	PDF version
PostScript version	PostScript version	PostScript version	PostScript version

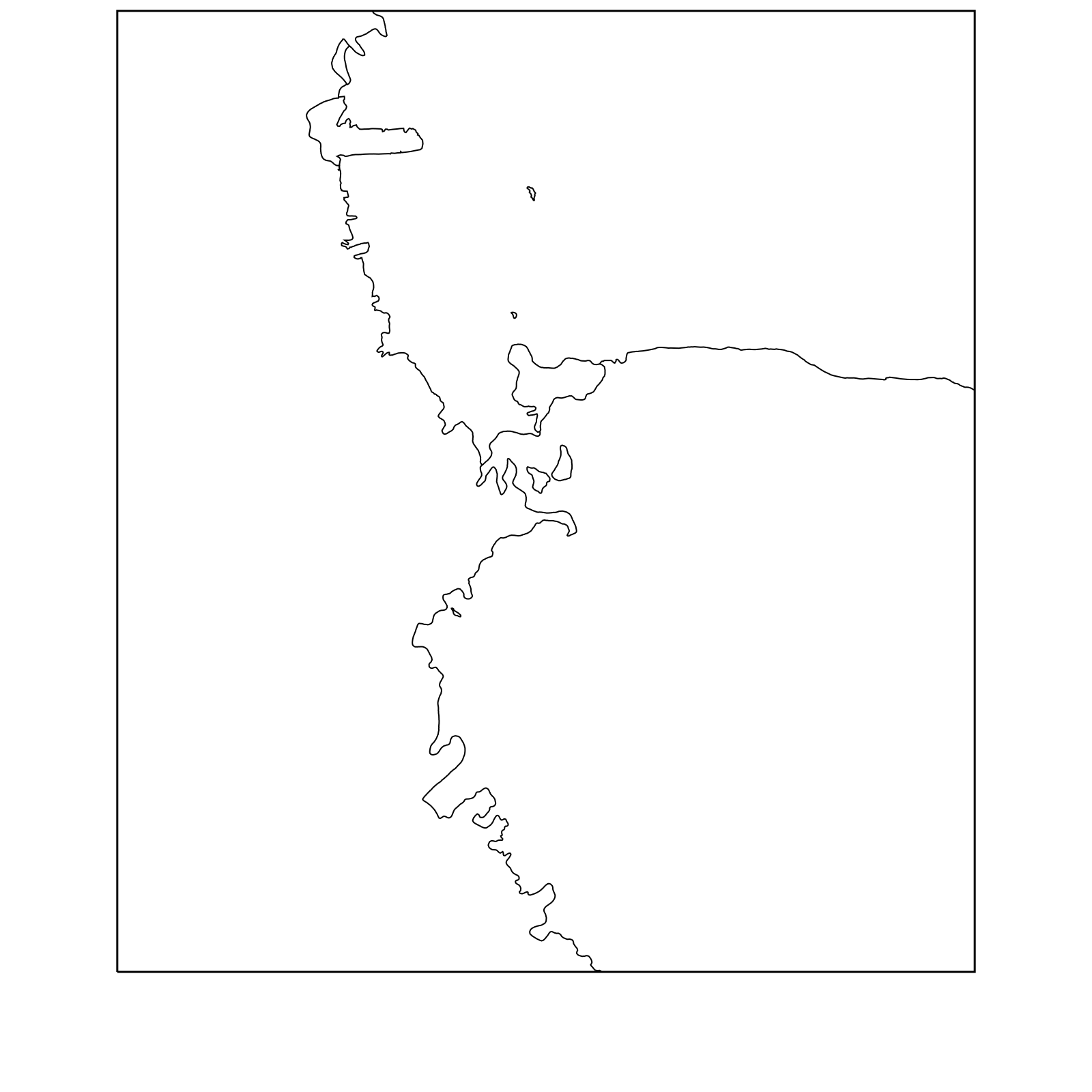

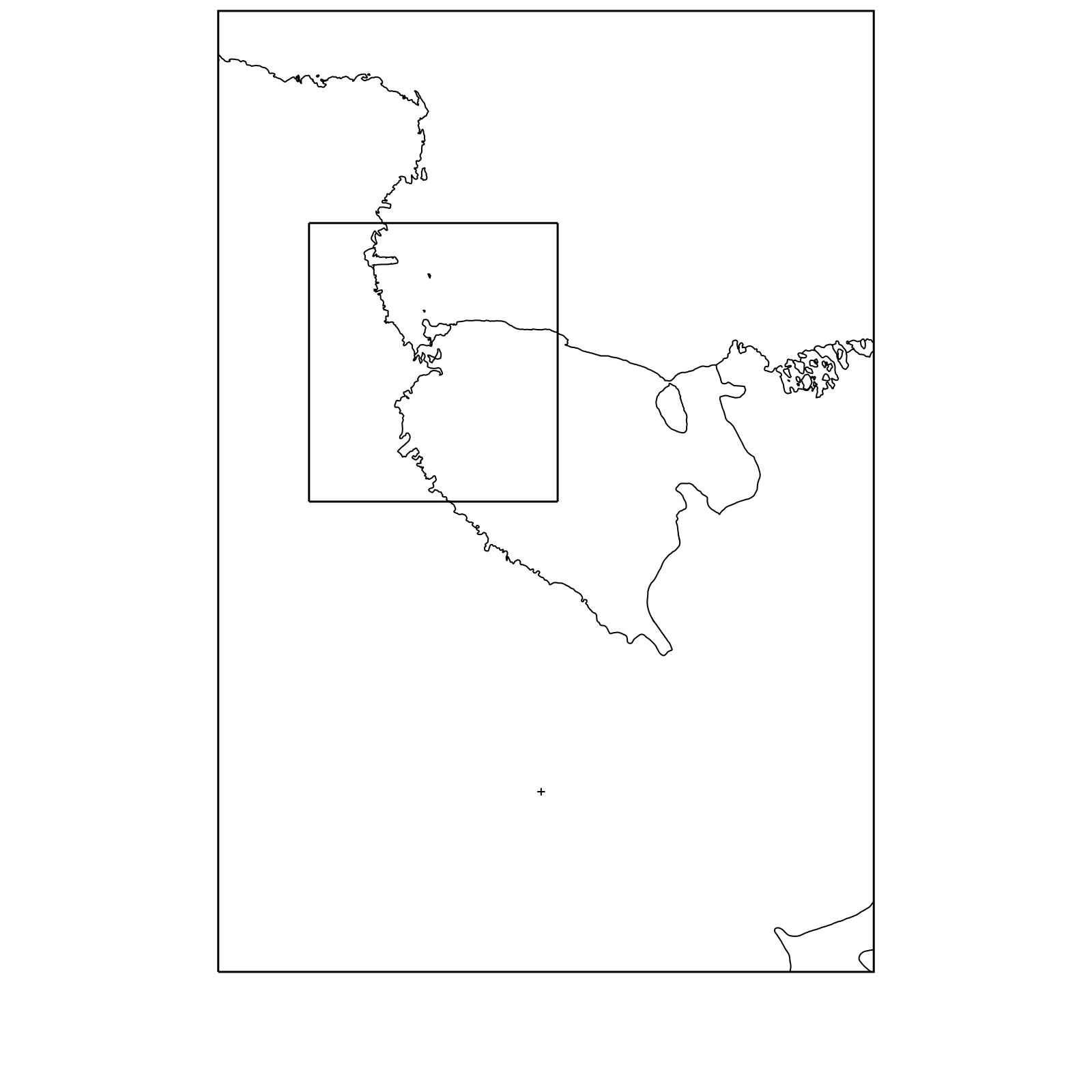

Grid 5 (0.89-km Ross Island grid):

WRF staggered grid:
dimensions: 769 x 901
lower left lat/lon (i.e., lower left corner of lower left mass grid cell): -80.3231735 N 142.587982 E
upper right lat/lon (i.e., upper right corner of upper right mass grid cell): -74.9791107 N -178.410034 E
WRF mass grid:
dimensions: 768 x 900
lower-left lat/lon (i.e., center of lower left mass grid cell): -80.3223953 N 142.622009 E
upper-right lat/lon (i.e., center of upper right mass grid cell): -74.9832611 N -178.425171 E

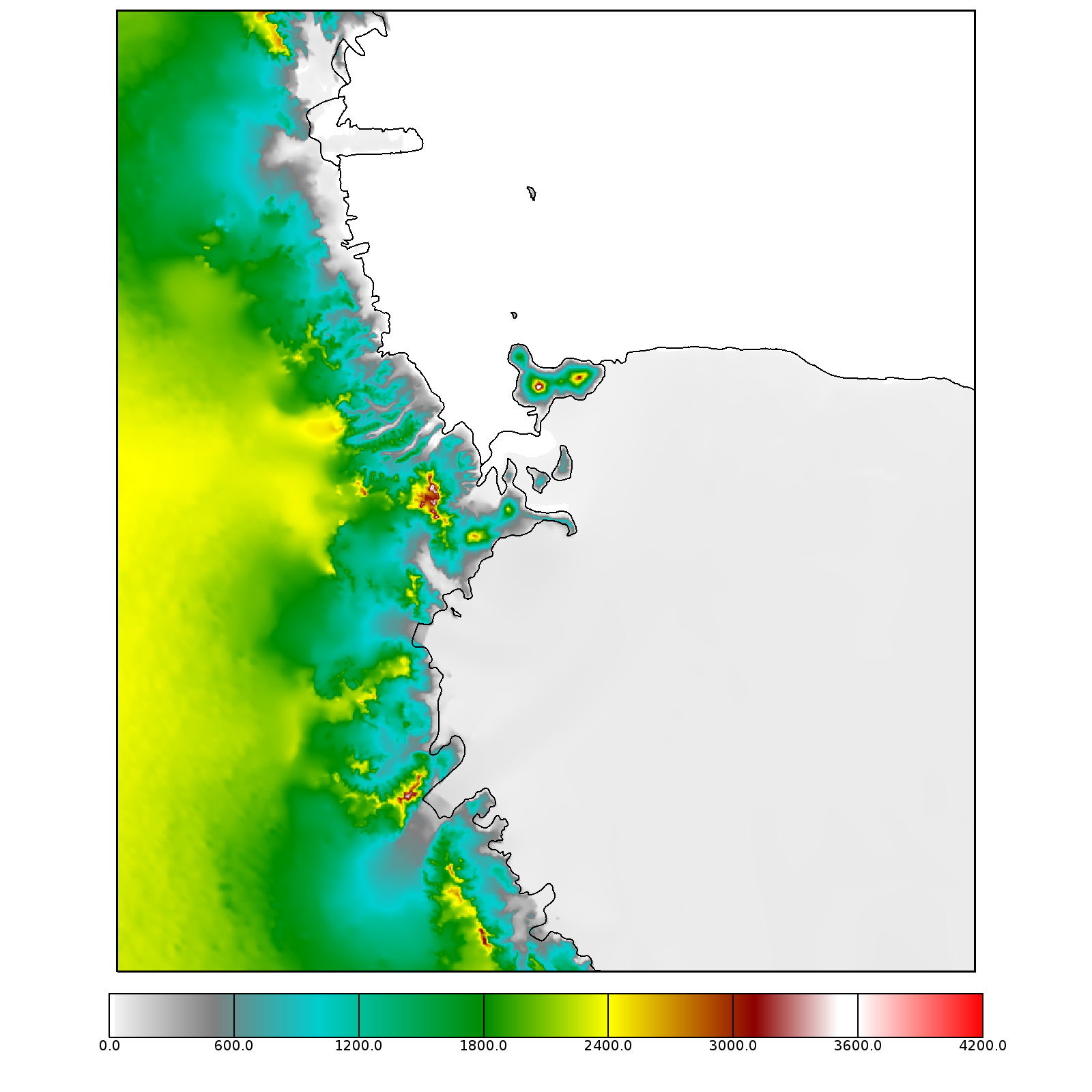

Color-fill terrain	Blank map
PNG version	PNG version
PDF version	PDF version
PostScript version	PostScript version

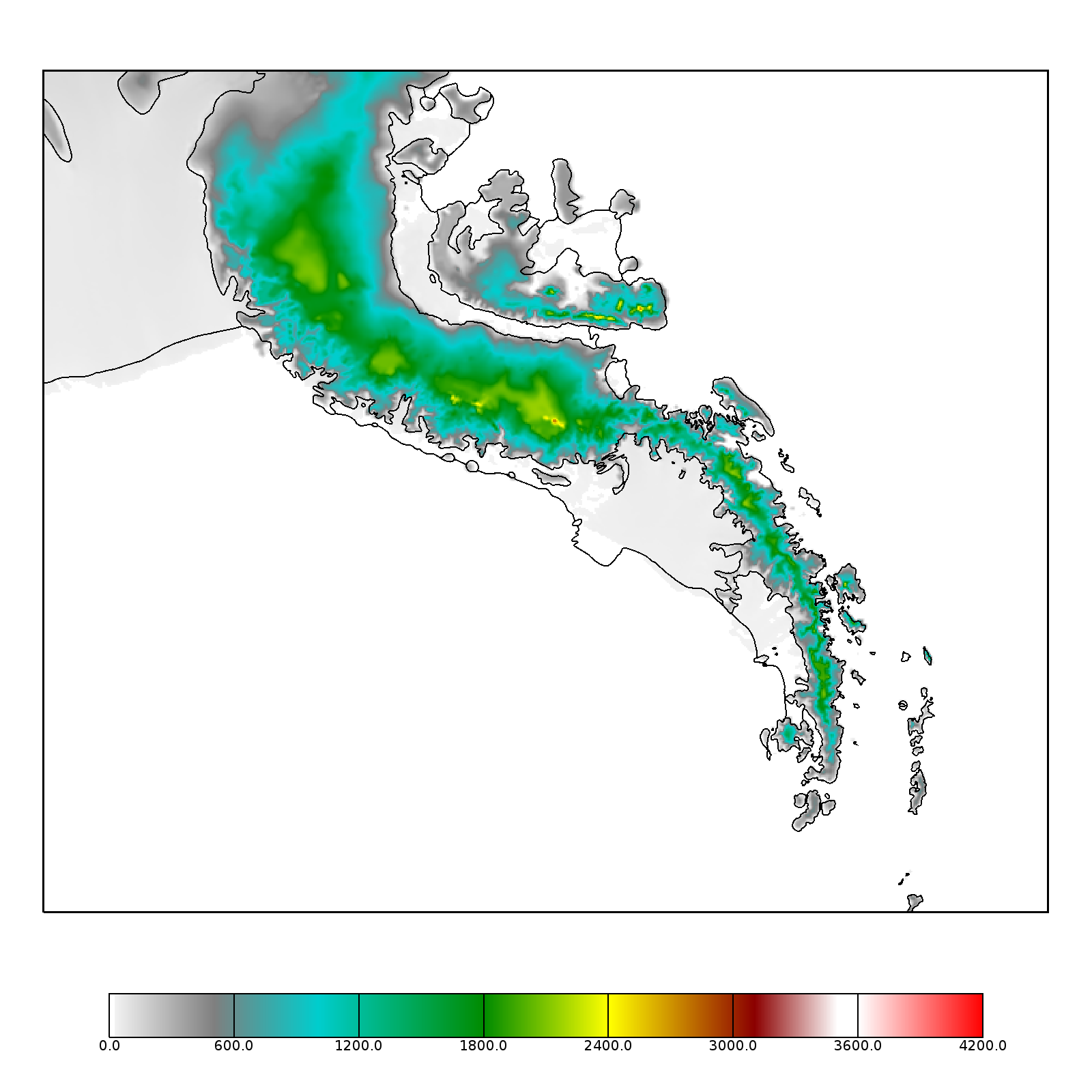

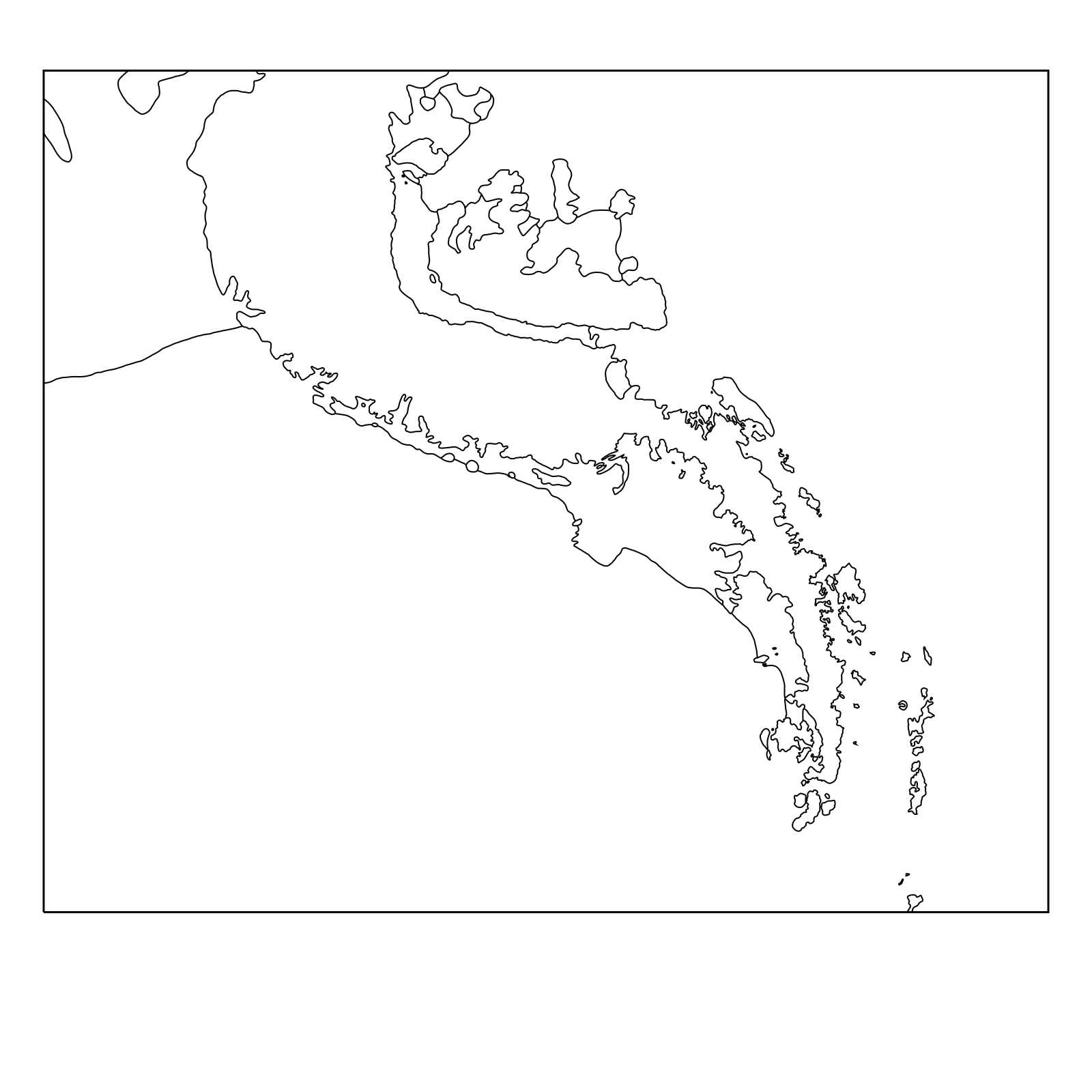

Grid 6 (2.67-km Antarctic Peninsula grid):
