Initial Exercise¶

This exercise outlines the fundamental steps and commands for running WRF. The namelists are pre-configured, requiring no modifications.

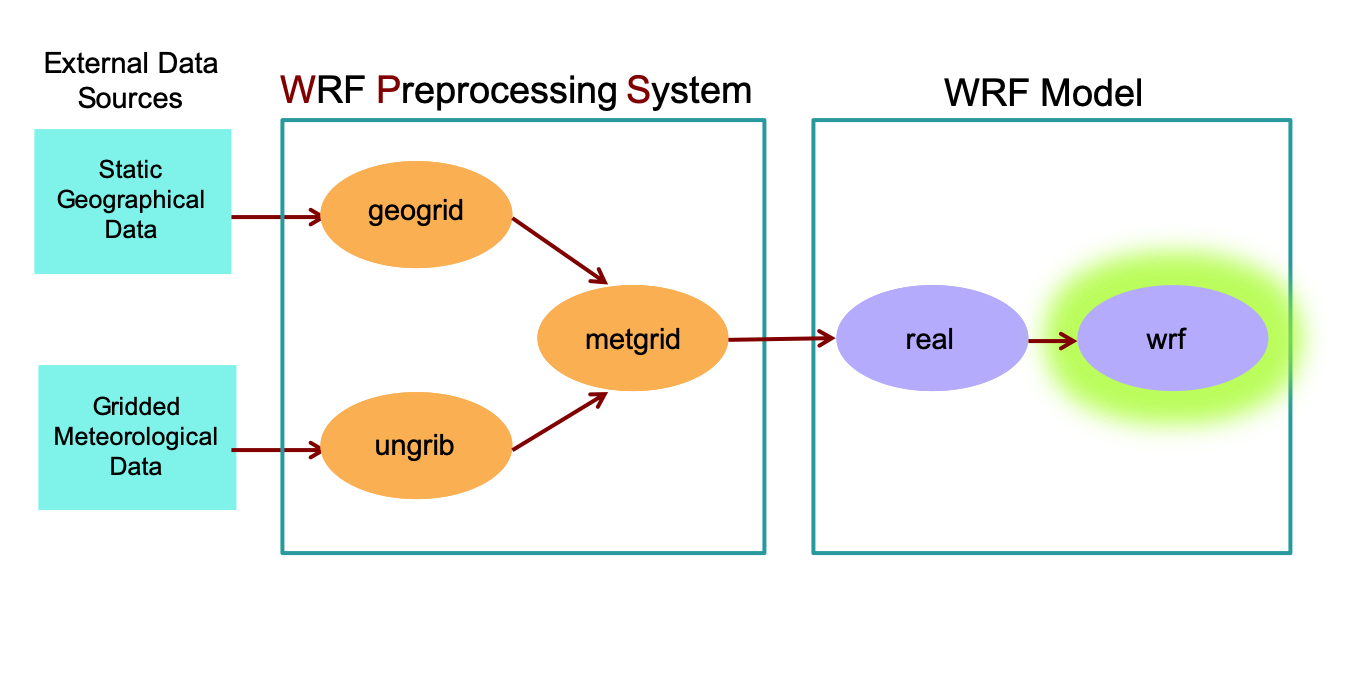

WRF execution is a five-step process across the following two main programs:

WPS

A set of three programs that prepare input to the WRF model:

geogrid : defines the model domain and interpolates static geographical data to the grids
ungrib : extracts meteorological fields from GRIB-formatted input data files
metgrid : horizontally interpolates the meteorological fields extracted by ungrib to the model domain defined by geogrid

WRF

The primary modeling system, broken into two programs:

real : vertically interpolates the meteorological fields (from WPS) to WRF eta levels
wrf : simulates the model run, using all previously-defined settings for the domain, input data, vertical interpolation, physics, and dynamics settings

WPS: Geogrid¶

geogrid

A WPS program that defines the model domain’s map projection, geographic location, size, and resolution. It also interpolates static geographic data (e.g., topography height, landuse category) from an external source, onto this domain.

To execute geogrid, navigate to the wps directory using the following terminal window command:
```
cd /glade/derecho/scratch/$USER/practice_exercises/wps
```
The namelist.wps file, which usually requires modifications to configure domain settings, has already been set up for this exercise.
Before running geogrid.exe, preview the domain using the plotgrids_new.ncl NCL script, located in the wps/util/ directory.

Important

X–forwarding is required to view plots directly from Derecho.

WRF INSTRUCTORS CANNOT HELP WITH THIS INSTALLATION!

Contact your institution’s system administrator for assistance or see Visualization Without X-forwarding for alternatives.

Issue the following command:
```
ncl util/plotgrids_new.ncl
```
Expect the following plot to appear on the screen, which may take several seconds. Click the image or use “ctrl-c” to close the window.
Now run geogrid.exe to configure the model grid.
```
./geogrid.exe
```
As geogrid processes, status updates are printed to the terminal, followed by Successful completion of geogrid when complete. Afterward, a listing of the directory (ls) should include the following new file:

geo_em.d01.nc

WPS: Ungrib¶

ungrib

A WPS program that processes GRIB-formatted meteorological data, a widely used input format. It extracts the relevant meteorological fields from these files and outputs them in an intermediate format compatible with the metgrid program.

For this exercise you will simulate a blizzard that took place in northeast Colorado 13-14 March, 2021. It was ranked as the 4th largest snowstorm in Denver history, dropping 27.1 inches of snow.

The following describes the input data:

Type	Global one-degree final analysis from the NCEP GFS model
Interval	Every 6 hours
Initial Time	2021-03-14_00:00:00
End Time	2021-03-14_12:00:00
Data Directory	/glade/campaign/mmm/wmr/wrf_tutorial/input_data/co_blizzard/
File Root	fnl_20210314
Vtable	Vtable.GFS

Again, essential modifications have already been made to the namelist, so you do not need to modify it.

Link the GRIB data to the current directory using the script file link_grib.csh:
```
./link_grib.csh /glade/campaign/mmm/wmr/wrf_tutorial/input_data/co_blizzard/fnl_20210314
```
A listing of the directory (ls) should show the linked files (titled GRIBFILE.XXX - one for each data file/time period).

GRIBFILE.AAA
GRIBFILE.AAB
GRIBFILE.AAC
Link the correct Vtable to your wps directory.

Vtables

Tables that define the fields to extract from GRIB files, decode the GRIB data, and convert the files to intermediate format for the metgrid program.

Since input is from GFS, link the GFS Vtable to the wps directory and rename it to Vtable - the name expected by the ungrib program.
```
ln -sf ungrib/Variable_Tables/Vtable.GFS Vtable
```
Ungrib the input data by running ungrib.exe. This is typically quick, but can sometimes take up to 5 minutes.
```
./ungrib.exe
```
As ungrib processes, status updates are printed to the terminal, followed by Successful completion of ungrib when complete. Afterward, a listing of the directory (ls) should include the following new files:

FILE:2021-03-14_00
FILE:2021-03-14_06
FILE:2021-03-14_12

The data are now in intermediate format and are ready for the metgrid.exe process.

WPS: Metgrid¶

metgrid

A WPS program that horizontally interpolates meteorological data extracted by ungrib onto the simulation domain(s) defined by geogrid, creating input files required by real and wrf.

To run the metgrid program, type:

./metgrid.exe

As metgrid processes, status updates are printed to the terminal, followed by Successful completion of metgrid when complete. Afterward, a listing of the directory (ls) should include the following new files:

met_em.d01.2021-03-14_00:00:00.nc
met_em.d01.2021-03-14_06:00:00.nc
met_em.d01.2021-03-14_12:00:00.nc

Real Program¶

real

A WRF program that defines the WRF model vertical coordinate by vertically interpolating the horizontal meteorological data from WPS (met_em* ). This process creates the initial condition and lateral boundary files required to run WRF.

To run the real.exe and wrf.exe programs, move to the wrf/test/em_real directory. From the wps directory, type:
```
cd /glade/derecho/scratch/$USER/practice_exercises/wrf/test/em_real
```
Link metgrid output data files from wps to the current directory. These files are used as input to the real.exe program.
```
ln -sf /glade/derecho/scratch/$USER/practice_exercises/wps/met_em* .
```
Typically at this point, the namelist.input file is modified to specify the domain, dates, physics options, etc., but since the namelist is already configured for this exercise, simply run the real.exe program, which uses the met_em* files as input to produce model initial condition and lateral boundary files.

Important

Unlike WPS, WRF was compiled for parallel computing (enabling the use of multiple processors). Because the NCAR HPC uses a queueing system, a batch script is required to queue and execute the model on the requested processors.

The real.exe batch script is called runreal.sh. Issue the following command:
```
qsub runreal.sh
```
Wait about one minute and then check the status of your request, using the following command:
```
qstat -u $USER
```
- If the run is still queued or actively running, it will be displayed in the output from the above command, and will look similar to:
```
                                                            Req'd  Req'd   Elap
Job ID          Username Queue    Jobname    SessID NDS TSK Memory Time  S Time
--------------- -------- -------- ---------- ------ --- --- ------ ----- - -----
1873233.desche* user     cpu      real          --    1  36  235gb 00:20 Q   --
```
  The “S” column above indicates the status, where the following definitions apply:
  - Q : the run is still sitting in the queue
  - R : the simulation is actively running
  - E : the simulation is finishing and will be done momentarily
- If no output appears, look for rsl.* files in your directory. If they exist, check the end of one of the files for the message SUCCESS COMPLETE REAL_EM INIT, indicating the program completed successfully.
```
tail rsl.out.0000
```
  If successful, the following initial condition and boundary files should be in your directory:

  wrfbdy_d01
  wrfinput_d01

  If unsuccessful, check the end of the rsl.error.0000 file for the issue.

Run WRF¶

wrf

The WRF model uses the intitial and boundary condition files generated by the real program to perform model integration, using user-specified options provided in the namelist.input file (e.g., physics options).

To run wrf.exe, use the runwrf_initial.sh batch script, which queues and executes the wrf simulation.

qsub runwrf_initial.sh

Wait about one minute and then check the status of your request, using the following command:

qstat -u $USER

To check the status of your run, use the qstat command.

If the run is still queued or actively running, it will be displayed in the output.
If no output appears, look for rsl.* files in your directory.
If rsl.* files exist, check the end of one of the files for the message SUCCESS COMPLETE WRF, indicating a successful completion.

If successful, the following history files should be available in the running directory. Note that the namelist.input file was set to output every 3 hours:

wrfout_d01_2021-03-14_00:00:00
wrfout_d01_2021-03-14_03:00:00
wrfout_d01_2021-03-14_06:00:00
wrfout_d01_2021-03-14_09:00:00
wrfout_d01_2021-03-14_12:00:00

Check Your Output¶

If interested in viewing fields in the wrf output files, try the netCDF data browser ncview:

ncview wrfout_d01*

To quit ncview, use the keyboard command “ctrl-c”, or click on the “quit” button.

Note

With the ncview window open, click on one of the variable boxes (1d vars, 2d vars, or 3d vars), and then choose a field to view. You can then click through different time periods and if the variables are in the 3d column, you can also look at each level. The following fields may be of interested:

RAINC : Accumulated total cumulus precipitation (under the list of “3d vars”)
RAINNC : Accumulated total grid scale precipitation (3d)
SNOWC : Snow coverage (3d)
SNOWNC : Accumulated total grid scale snow and ice (3d)
PSFC : Surface pressure (3d)
Q2/T2 : Water Vapor/Temperature at 2m above ground (3d)
U10/V10 : X/Y Component of wind (speed) at 10m above ground (3d)
MU : Perturbation dry air mass in column (3d)
PH : Perturbation geopotentail (under the list of “4d vars”)
QVAPOR/QCLOUD/QRAIN/QICE/QSNOW : Vapor/Cloud water/Rain water/Ice/Snow mixing ratio (4d)
U/V : X/Y-wind component (speed) (4d)

Organization Suggestion

Create a new directory within wrf/test/em_real/ (e.g., “initial_exercise”) for each exercise to save your work and avoid overwriting existing files that will be used later.

mkdir initial_exercise

and then copy the necessary files into that directory:

cp wrfbdy_d01 wrfinput_d01 namelist.input wrfout* rsl* initial_exercise

Later, when asked to use those files, simply copy them back into the working directory. For example:

cp initial_exercise/wrfbdy_d01 .
